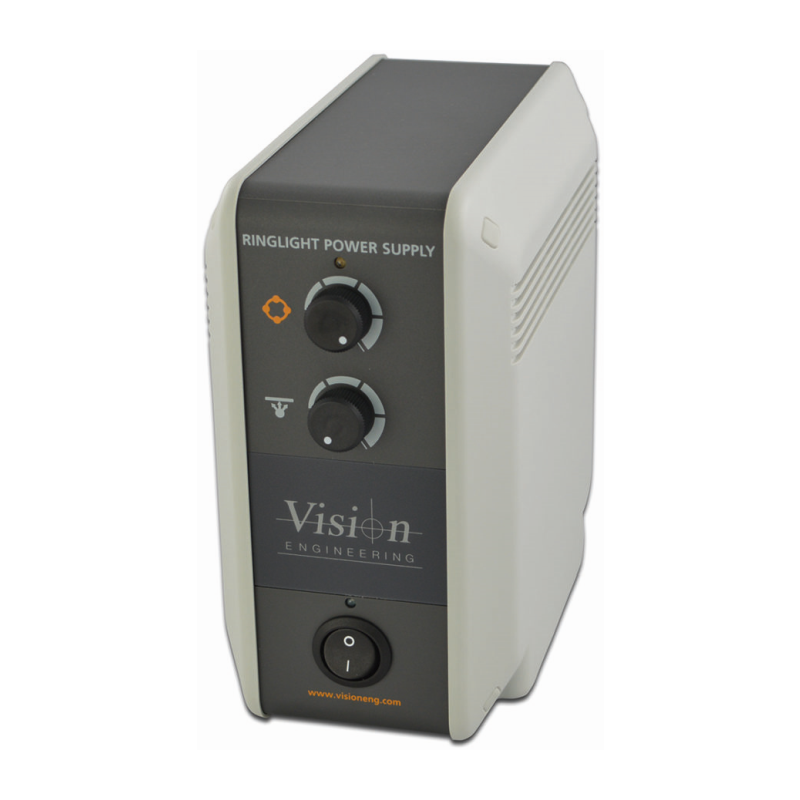

Power unit (enhanced)

Connects to two illumination sources; Ring-light OR 360° rotating optical viewer AND sub-stage illuminator. Allows control of illumination brightness.

Key Highlights:
•    Added option to set and recall three Presets for the Lynx EVO illumination
•    Added option for quadrant control for Lynx EVO ring-lights

To unlock the added functionality Vision Engineering’s remote keypad ECX155 can be connected to the new power supply allowing comfortable use with added functions at the touch of a button.

Controls when remote keypad is connected.
Short press Long press (3s)
P1 Recall Preset 1 Save Preset 1
P2 Recall Preset 2 Save Preset 1
P3 Recall Preset 3 Save Preset 1
Ring-light + Step brightness up Brightness up
Ring-light - Step brightness down Brightness down
Sub-stage + Step brightness up Brightness up
Sub-stage - Step brightness down Brightness down
Zoom in Toggle REAR light quadrant -
Zoom out Toggle FRONT light quadrant -
Camera Toggle LEFT light quadrant -
Menu Toggle RIGHT light quadrant -
