  • 4426104
SALE

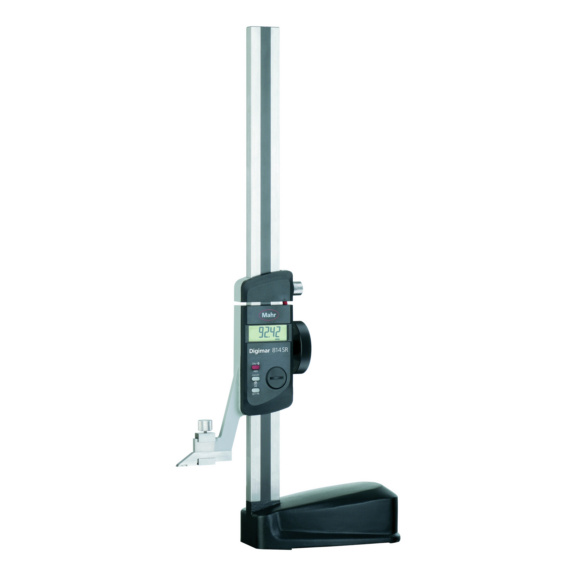

Digital height marker Digimar 814 SR980

Product features
- Interchangeable measuring and marking tip, carbide-tipped
- Practical handwheel for positioning and measuring
- Fine adjustment device with locking screw
- Ergonomic, stable base
- Hardened, lapped base, therefore smoothly movable
- Hardened slider and rail, stainless
- High-contrast 12 mm high LCD display
- Data interface: ... Read more
€ 1.785,00
€ 1.430,00 (€ 1.701,70 incl. VAT)
Ordercode 4426104
Product features
- Interchangeable measuring and marking tip, carbide-tipped
- Practical handwheel for positioning and measuring
- Fine adjustment device with locking screw
- Ergonomic, stable base
- Hardened, lapped base, therefore smoothly movable
- Hardened slider and rail, stainless
- High-contrast 12 mm high LCD display
- Data interface: USB, Opto RS232, Digimatic
- Battery life up to 3 years

Functions
RESET (zeroing the display), mm/inch, ABS (switching from relative to absolute measurement), Lock/Unlock, PRESET (dimension presetting), DATA (in conjunction with data connection cable), AUTO ON / OFF

Scope of delivery
Marking tip, battery, test report, operating instructions, cardboard box

Application
- For scribing and marking of workpieces
- For measuring heights and distances
