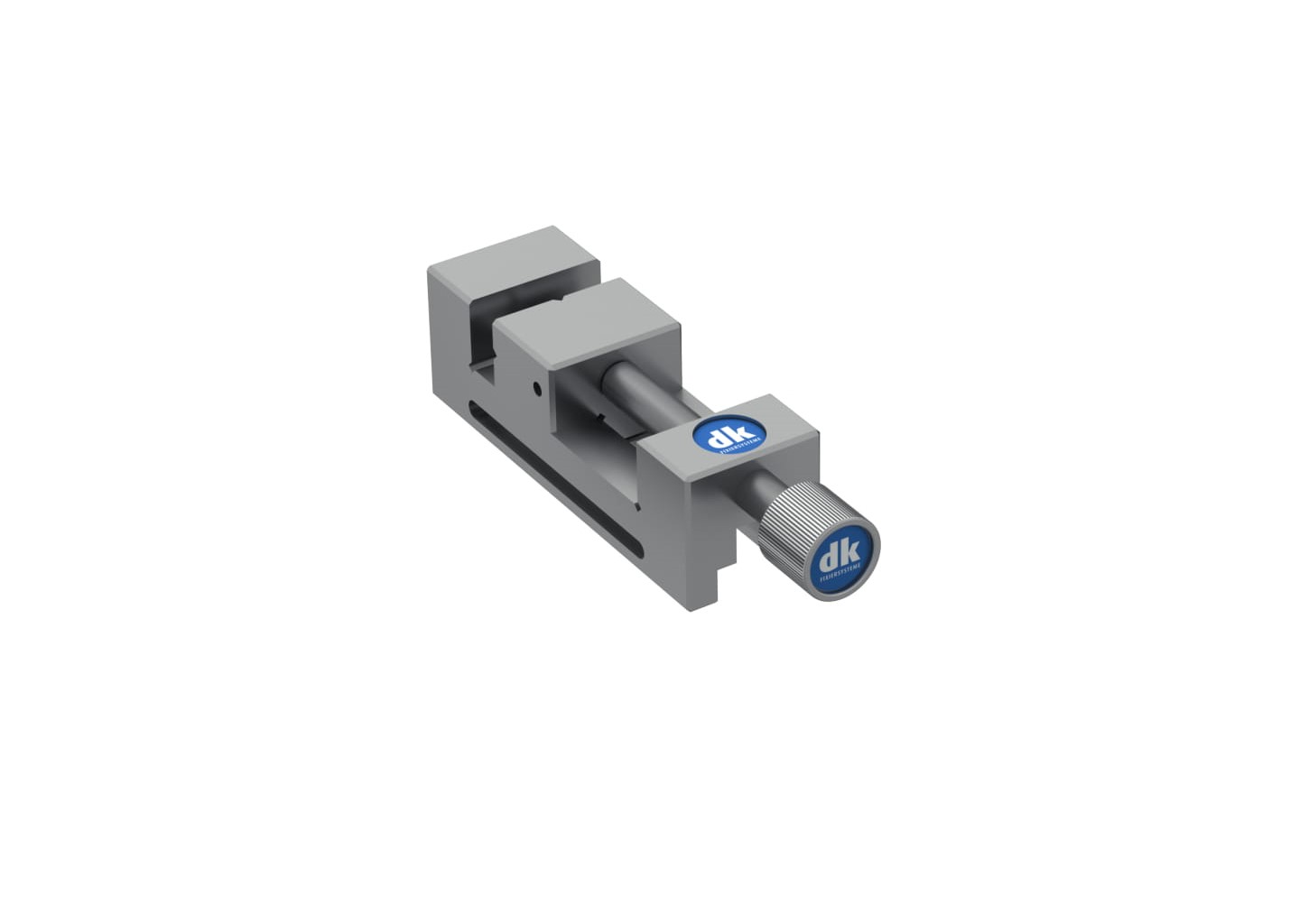

Inspection vice 35mm

Description
Due to a perpendicularity and parallelism precision of 0.005 mm, all 4 sides can be used. Horizontally and vertically ground prism jaws. Vice and fixed jaw machined from a single piece. By using the attachment sets the vices can also be used in the SWA 39 system.

Material
Alloyed tool steel, hardened to 60 HRC and finely ground.

Total length ... Read more
€ 286,00 (€ 340,34 incl. VAT)
Ordercode 270740
Description
Due to a perpendicularity and parallelism precision of 0.005 mm, all 4 sides can be used. Horizontally and vertically ground prism jaws. Vice and fixed jaw machined from a single piece. By using the attachment sets the vices can also be used in the SWA 39 system.

Material
Alloyed tool steel, hardened to 60 HRC and finely ground.

Total length open     175 mm
Total length closed     140 mm
Width     35 mm
Height     35 mm
Clamping width     34.5 mm
Weight     0.775 kg
Perpendicularity / parallelism 5 µm
