Description

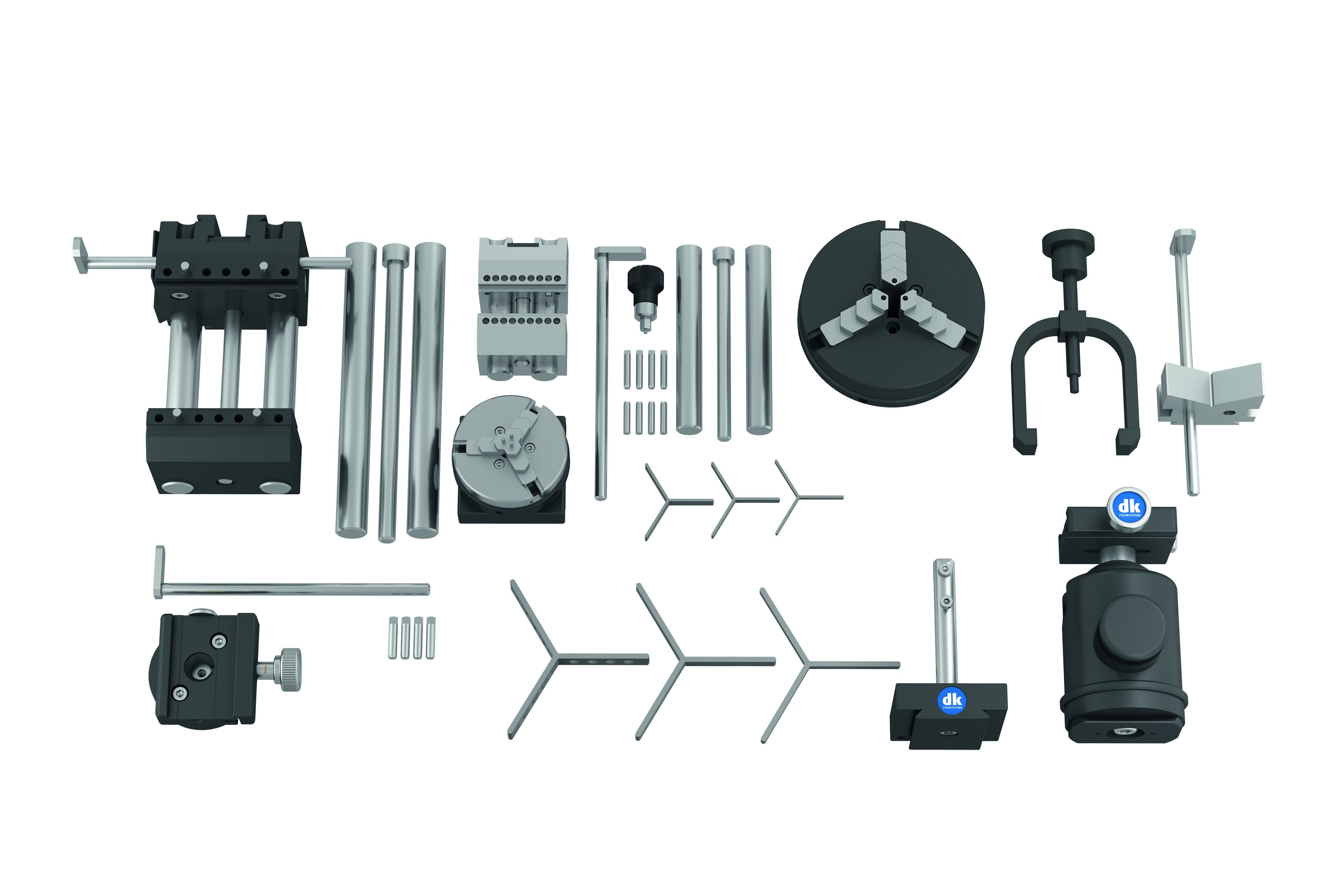

Set "C" with basic, structural and a range of clamping elements in various sizes. The 50 mm precision vice with a range of accessories, 80 mm vice, 65 mm and 100 mm chucks, small-parts clamp and V-block with stop and U-clamp can be mounted directly to the quick-action basic clamp as a kind of zero-point clamping fixture. Alternatively, a 3D adjustment unit can be mounted in between enabling 3D spatial positioning of the clamping element and workpiece. This enables zero-point clamping with variable, spatial alignment for a variety of workpiece geometries and sizes.
Ordering information
When ordering, select the appropriate quick-action clamp or let us know the thread or T-slot size on your measuring equipment.
Set contents
282100 50 mm vice with accessories 1x
282300 Set of stepped pins for 50 mm vice 1x
308300 80 mm vice with connections for SWA 39 on 3 faces 1x
307800 Set of stepped pins for 80 mm vice 1x
329700 65 mm chuck 1x
283250 Seating spacers for 65 mm chuck, 3, 5, and 7 mm high. 1x
283220 100 mm chuck 1x
283255 Seating spacers for 100 mm chuck, 5, 8, and 12 mm high. 1x
272700 120° V-block 1x
272920 U-clamp for V-block 1x
275600 Small-parts clamp, smooth 1x
270500 Swivel unit with ball joint 1x
285206 M 6 or 285208 M 8 or 285210 M 10 or 285212 M 12 or 285300 T-slot 1x
