Precision clamping plate

300 mm, incl. slot for passing measuring probe through

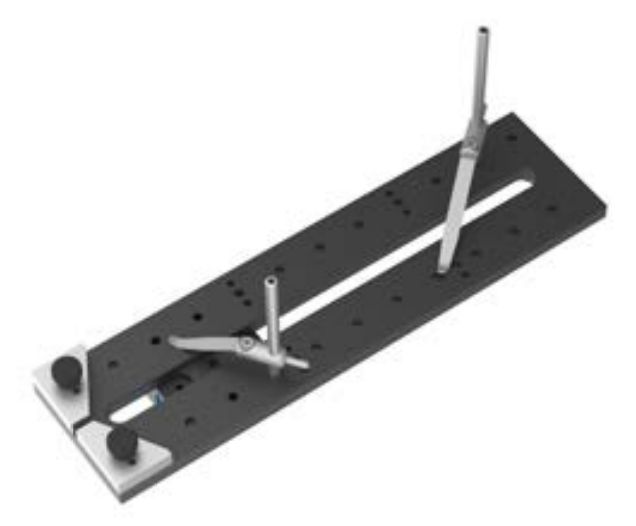

Precision clamping plate for measuring surfaces and contours.

Combination supports can be mounted tool-free in three positions: in pairs, as prisms or as straight stops. Two columns with lengths of 75 and 100 mm and two spring fingers with lengths of 50 and 75 mm can be mounted tool-free in 18 different positions. In this way, the test part can be securely and tool-free fixated almost anywhere. The SWA39 adapter underneath makes the fixture combinable with the baseplate and all SWA39 positioning elements. It can therefore be ideally enhanced with an X, Y, swivel and tilt adjustment. This can be modular in all functions or several fine adjustment functions can be combined on the positioning stage.

Including 2 variably positionable combi-prism supports as well as 2 columns of different lengths and spring fingers for tool-free part fixation. SWA39 interface below.
