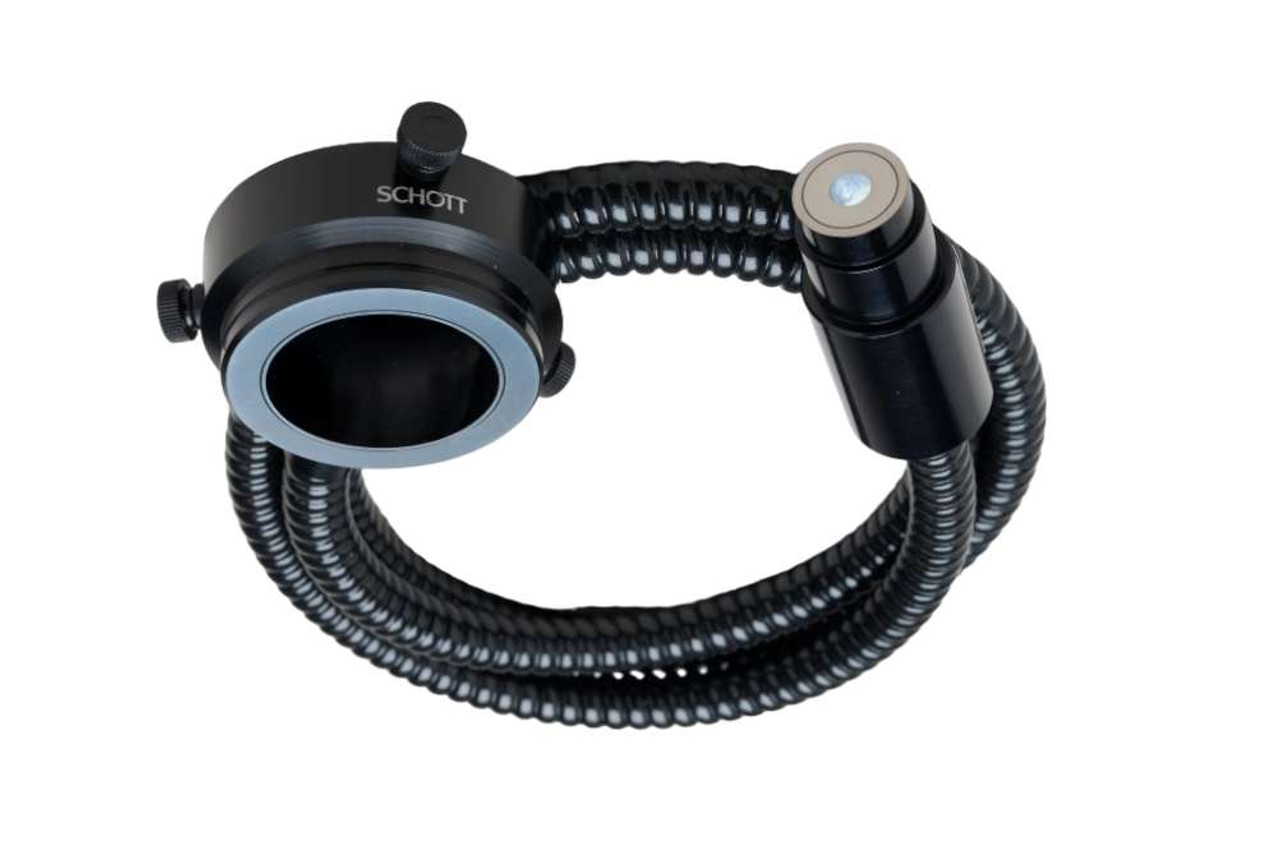

Mini Ringlight 19/32.5mm, long WD

ColdVision Ring Lights
for ColdVision light sources

SCHOTT ColdVision Ring lights offer absolute shadow free illumination. Using a range of diameters and mechanical adapters, the ring lights can be configured to fit many different objective sizes.

Features:
• The “Universal Ring Light" fits microscope and camera objectives from 33 to 81 mm with ... Lees meer
€ 415,00 (€ 502,15 incl. BTW)
Bestelcode A08660
ColdVision Ring Lights
for ColdVision light sources

SCHOTT ColdVision Ring lights offer absolute shadow free illumination. Using a range of diameters and mechanical adapters, the ring lights can be configured to fit many different objective sizes.

Features:
• The “Universal Ring Light" fits microscope and camera objectives from 33 to 81 mm with appropriate clamps
• 4” Ring Light is available with randomized fiber bundle for optimum uniformity.
• With housing made of rugged, black anodized aluminum, and the fiber bundle protected with flexible metal PVC sheathing, SCHOTT Ring Lights are tough, dependable and long lasting.

Advantages:
• Annular Ring Lights offer absolute shadow free illumination.
• Vertical exit bundle option increases work space and prevents the bundle from interfering with surrounding objects.
• ESD ( Electro Static Discharge) option is available.

Mini Ring Light
Working distance (FWD) : 1.5" - 4" (38 - 102mm)
Objective diameter              : 19 to 32.5mm
Inner Ø                                        : 1.28" ( 32.5mm)
Outer Ø                                      : 2" (50.8mm)
Bundle Length                        : 40" (1016mm)
Polarizer / Analyzer            : A08652
