Schott
Main Image
Item 1 of 2

  • A08520
  • A08520-D

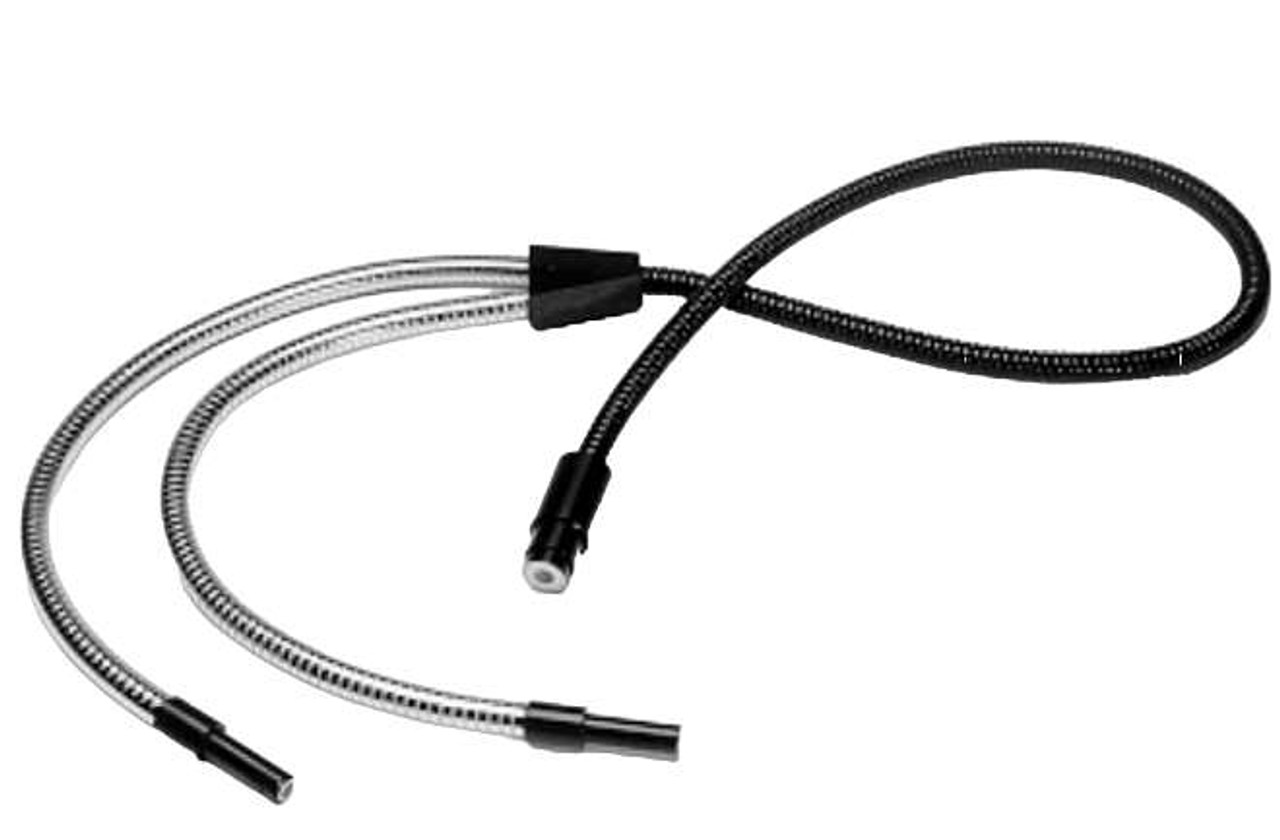

Gooseneck+flex 30"

Gooseneck light guides deliver incident illumination that remains in place after positioning. Generally used to highlight structures through shadows in space constrained applications, these trusted light guides offer both flexibility and mechanical stability.

Combination Goosenecks and Bundles
0.30" (8mm) Active Input Fiber
0.21" (5mm) Active Output Fiber ... Lees meer
€ 465,50 (€ 563,26 incl. BTW)
Bestelcode A08520
Gooseneck light guides deliver incident illumination that remains in place after positioning. Generally used to highlight structures through shadows in space constrained applications, these trusted light guides offer both flexibility and mechanical stability.

Combination Goosenecks and Bundles
0.30" (8mm) Active Input Fiber
0.21" (5mm) Active Output Fiber Diameter
0.47" (12mm) Tubing Diameter Bundle
0.46" (12mm) Tubing DiameterGooseneck
30" (762mm) Length Bundle
18" (457mm) LengthGooseneck

Features:
• Flex and stay light guides.
• Available with 1 or 2 branches.
• Available as chrome plated semi obedient metal or black dekabon versions.
• Available as 2 branch Gooseneck plus flexible bundle (Combination Light Guide).
• Available as dual focusing gooseneck with permanently attached spot lenses.
• Focusing optics and filter accessories available.

Advantages:
• Mechanical stability enables long term usability.
• Flexibility enables precise positioning for complete control of light placement.
• The Combination Light Guide can be stationary, fixed at the microscope post.
• Dual models illuminate a workspace with a single light source.
• Gooseneck legs placed in opposing positions create shadow free illumination.
