ColdVision Fiber Optic Light Sources
SCHOTT ColdVision Light Sources provide flexible and versatile illumination. The robust metal housing, high quality components and long lifetime of the light sources make them the ideal choice for harsh environments in industrial applications.
Advanced control options
SCHOTT ColdVision Light Sources have been developed for efficiency, reliability and functionality, with a range of hardware interfaces to provide seamless integration with existing and new illumination systems. Industrial Ethernet, USB and RS232 ports, and a remote control option, offer highly versatile connectivity and control.

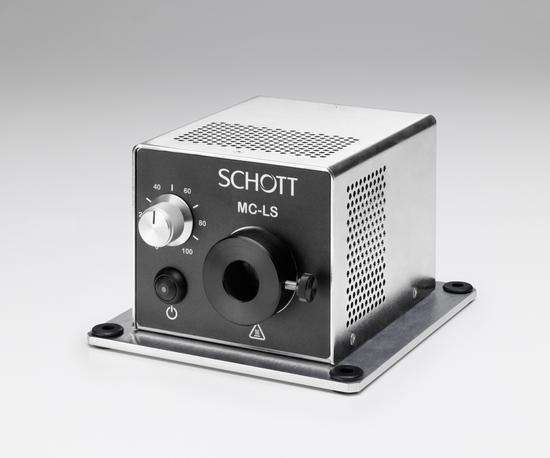

As the standard LED fiber optic light source in the SCHOTT ColdVision range, the MC-LS delivers exceptional light output from its high-brightness LED engine. Developed for stereo microscopy, the design of the light source makes it highly suitable for desktop usage, where its USB port can easily connect to application software systems.
Lamp Type : LED
Lamp lifetime : 50.000 h
Color Temperature : 5400 K
Lightflux (lm) : 850*
Max. active light guide Ø (mm) : 13
Wide range power supply
Continuous dimming
Filter compatible (attached to Light Guide)
Fan cooling
Connectivity : USB, RS-232, Analog
Input voltage :100 - 240 Vac, 50/60 Hz, 1.5A, 60W
Dimensions : Length 158 mm (6.2 inches ). Width: 145 mm (5.7 inches), Height: 98 mm (3.9 inches)
Weight : 2.0 kg (4.62 lbs)
Operating Temperature : 0°C (32°F) to 40°C (104°F)
Characteristics
• Can be controlled by digital remote control via USB port (virtual RS232) or built-in 9-pin connector (analog)
• Wide range of power supplies, all compliant with international standards
• Continuous dimming from 0-100%
• Temperature monitoring for protection of the LED light engine
Advantages
• Robust industrial design with a small footprint and ultra-quiet operation
• High resistance to vibration and shock
• Long-life, high-efficiency, maintenance-free LED light engine
• Low power consumption
• Over 10% higher output than EKE halogen light sources*
• Stable light output with minimal variation in color temperature
• ETL approved, RoHS compliant
• Compatible with ColdVision light guides
*Light sources compared at the output of a SCHOTT ColdVision fiber optic light guide, Ø13mm active, length 1m (A08051.40 bundle), 23°C ambient, typical output
