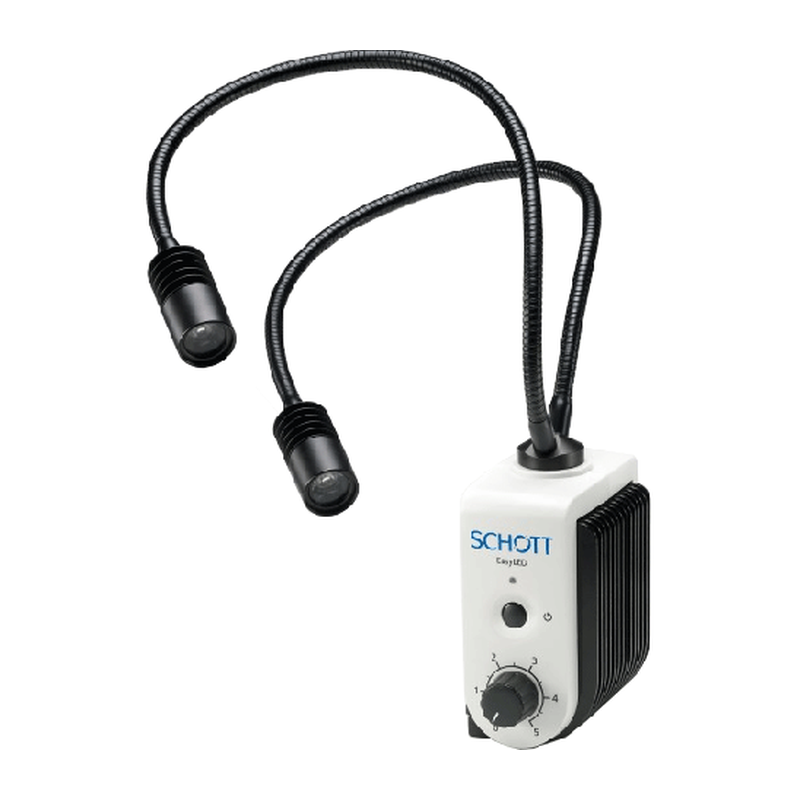

Spot Light Plus Double llumination system

General
Part No. 600.121
Dimensions – control unit (W x D x H) (mm / inch) Approx. 61 x 114 x 107 / 2.40” x 4.49” x 4.21
Dimensions – Length Spot incl. Light Head (mm / inch) 500 / 19.69
Weight (kg) Approx. 0.7
Cooling Convection

Electrical
- Power supply unit -
Operating voltage, frequency 100 – 240 V ~, 50 – 60 Hz
Power consumption (VA) max. 6
Protection class II
Overvoltage category II
- Controller -
Supply Voltage (V) 5 DC
Lamp type High Power LED
Lamp lifetime (h) 50.000 ¹

Lighting information
Luminous flux (lm) 130
Color temperature (K) Appr. 5.600
Light exit angle (2αeff) Approx. 53°

Certification marks
Marking CE, (power supply unit CE, UL, PSE)
EMC-class B

¹ max. decline of light output to 70% of origin level
