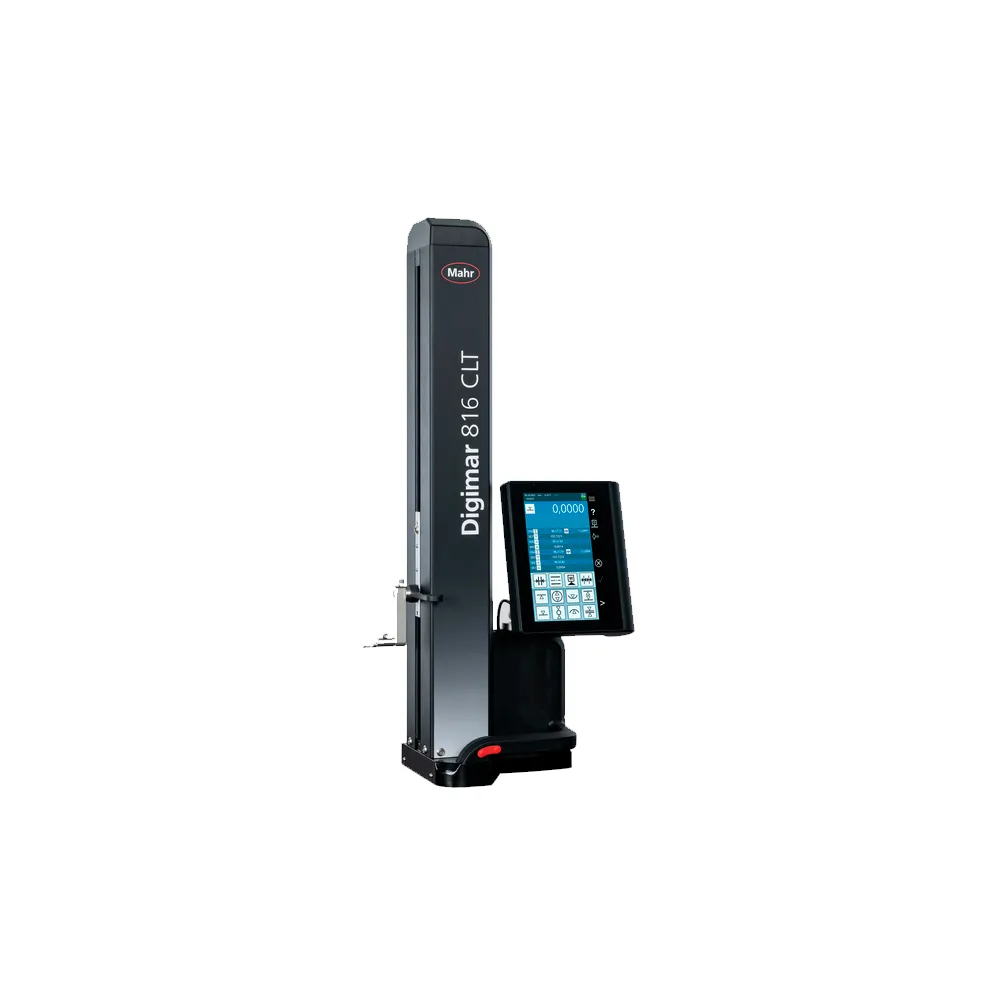

Measure close to production with the new Digimar 816 CLT
Measurements in the thick of the action: This is what the new Digimar 816 CLT is all about: thanks to its optimized mechanics, has proven itself in the rough and tumble of everyday production.
Measure accurately and easily like never before! The new addition to the Mahr height measuring instruments boasts outstanding measuring accuracy and is extremely easy to operate. The Digimar 816 CLT has a practical touch display with extra-large buttons, an integrated PDF memory, data transfer via Bluetooth and a wide range of accessories to make your work easier.
Advantages
• Extra large buttons for quick and reliable execution of functions
• Reliable measuring results thanks to motorized contacting without manual operator influence
• Create PDF measuring records directly on the device
• Wireless data transfer or via USB
• Free MarCom software to transfer data
FEATURES
Functions
• Contacting bottom or top
– Web width or groove spacing incl. web or groove center
– Bore or shaft diameter incl. bore or shaft center
• Bore reversal point (top or bottom)
• Shaft eversal point (top or bottom)
• Calculate distances or symmetry
• Dynamic measuring functions
• Perpendicularity measurement
• Straightness measurement
• Measuring programs
• Measurement data processing
• Large and clearly defined touch display with backlighting
• User guide with self-explanatory icons
• Multilingual user guidance
• Option of setting additional zero points on the workpiece
• Additional measuring instrument can be connected via MarConnect USB port
• Future-proof thanks to software updates
• Automatic activation of standby mode
• Selectable auto-off function, without loss of measured values
• Excellent measuring accuracy and reliability due to the optical incremental measuring system with the double reader head
• Dynamic probe system enabling high repeatability
• Air bearing system for light and smooth movement
• Measuring head guided in precision ball bearings
• Motorized measuring slide simplifies measurement runs
• Probe constant remains after the instrument is switched off
• Integrated rechargeable battery with a long operating life for mains-independent measurement
• Temperature compensation via integrated temperature sensor
• Software: MarCom Professional free download: www.mahr.com/marcom (only for Mahr data cables and wireless systems with USB and RS–232 interface)
• Package contains: height measuring instrument incl. operating and display unit, carrier 817h1, probe K6/51, setting block 817 eb, USB cable, instruction manual, power source, protection cover, calibration certificate
• Energy supply: Integrated rechargeable battery (up to 14 h) or via power supply unit
• Battery type: Rechargeable LiIon battery 7.2 V
• Data interface: 3x USB 2.0, wirelesswithout manual operator influence
• Create PDF measuring records directly on the device
• Wireless data transfer or via USB
• Free MarCom software to transfer data
TECHNICAL DATA
Type 816 CLT
Measuring range (mm) 0 – 600
Measuring range (inch) 0 – 24”
Application range from (mm) 170
Application range up to (mm) 770
Numerical increment (mm) 0.0001, 0.0005, 0.001, 0.005, 0.01
Resolution (inch) .001”, .0005”, .0001”, .00005”, .00001”
Error limit (μm) (2.0 + L/400) L in mm
Repeatability planes (μm) 1
Repeatability bores (μm) 2
Perpendicularity error (μm) 8
Operating time max. (h) 14
Data interface: 3x USB 2.0, Wireless
Product weight (kg) 26
