The Bowers universal gauges are perfect for measuring internal and external dimensions such as grooves, shoulders, recesses, threads, tapers, gears, splines, hole centres.
PRODUCT DESCRIPTION
Available with a wide range of measuring contacts to enable measurement of a variety of features, Bowers universal gauges are perfect for measuring internal and external dimensions such as grooves, shoulders, recesses, threads, tapers, gears, splines, hole centres.
FEATURES
Internal and external measurement
Large measuring range possible 0-3000mm (0-118")
Constant measuring force
Supplied with digital readout
Large range of accessories for standard measurement of threads, grooves, splines, diameters, lengths, shallow spigots and recess diameters etc
Special anvil designs available P.O.A

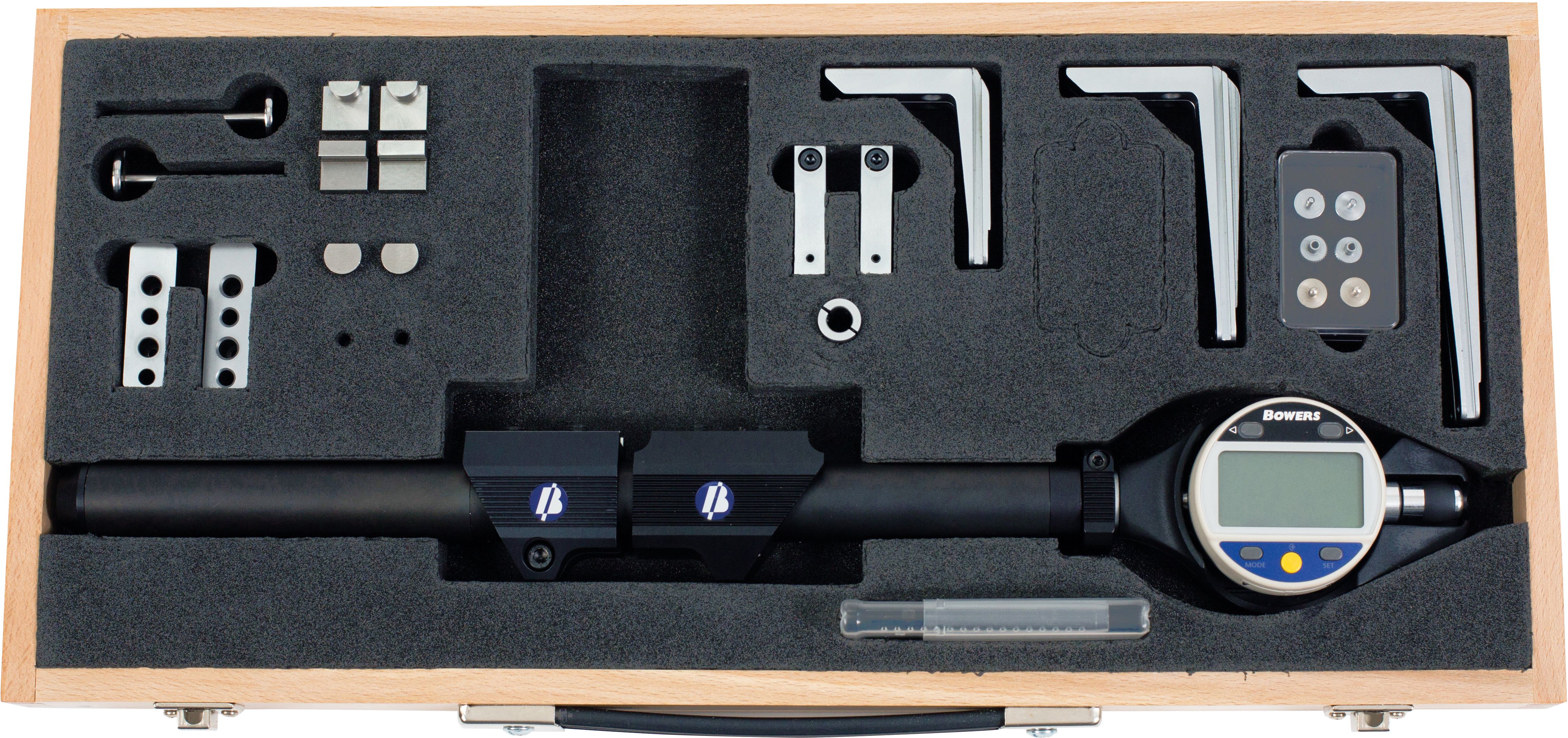

TGUSET1 CONTENTS
TGU1000-XT Universal with Box but without Indicator or Accessories
TGUA001-AN Digital / Analogue Indicator 25mm / 0.001mm c/w COWL
TGUA006 Measuring arms 50mm (Pair)
TGUA007 Measuring Arms 75mm (Pair)
TGUA008 Measuring Arms 100mm (Pair)
TGUA013 20mm Disc Anvils for measuring grooves (Pair)
TGUA014 12mm Disc Anvils Int/Ext for measuring grooves (Pair)
TGUA011 Shoulder anvils flat outside spigot diameter (Pair)
TGUA012 Semi-cylindrical anvils for inside register diameters (Pair)
TGUA010 Depth-stops (Pair)
TGUA003 Clamping inserts (Pair)
TGUA004 Flat Measuring Anvil (Pair)
TGUA005 Spherical contacts (Pair)
TGUA009 Mounting Attachment (Pair)
