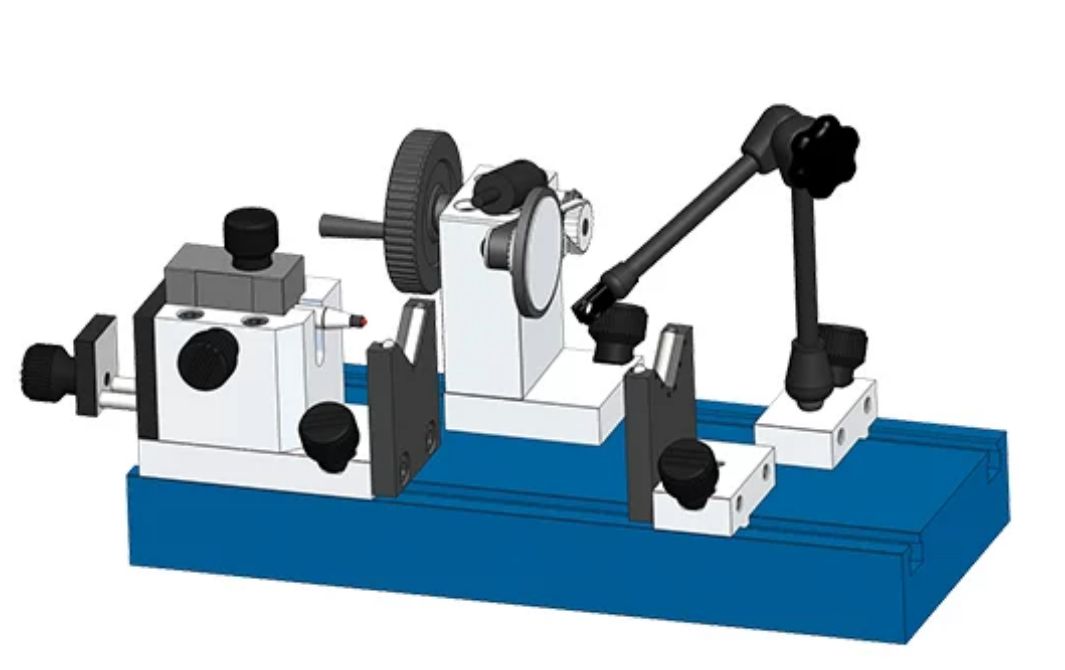

Concentricity gauge with adjustable prism support

Radial run-out testing with perfectly matched components
Fixation, movement and measuring stand from one source from the specialist for measuring fixation systems:
Due to their robust construction, the concentricity gauges can be used both in inspection and machine shops. The inspection devices can be equipped with dial gauges or electronic probes.

The prismatic rests are made from carbide rods. By using the integrated adjustment unit, the stop can be quickly and precisely set to the workpiece centre point. The handwheel enables a very slow rotation of the workpieces. A sliding counterweight enables the thrust pressure on the friction wheel to be regulated. The structural elements are so designed that they can be flexibly combined with each other.

Baseplate 300 mm x 120 mm, total weight ca. 6 kg

Suitable for:
» Concentricity and coaxiality
» Radial and axial run-out
» Total runout
» Diameter comparison
» Optical measurements
» Support station for surface finish measurements
