Clamping component set large

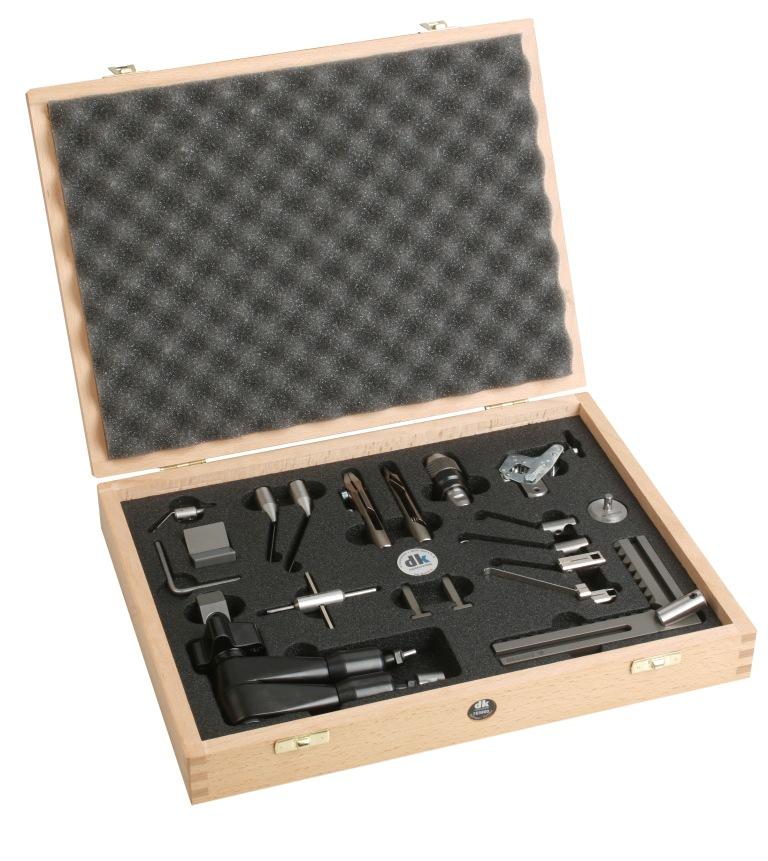

"Standard model II" clamping component set with storage box

Description
For optical measuring instruments and microscopes. For clamping e.g. plastic, punched or turned parts. The basis is a high quality articulated arm on which clamping elements such as a mini chuck, spring finger or parallel clamp can be mounted.

Ordering information
When ordering, let us know the thread or T-slot size on your measuring equipment.

Set contents
Order No.     Description
296800 244015     Articulated arm, type SU VL-160-8-SWA5
268900     Rest angle with spring clamp including: 120 x 80 mm rest angle 2 columns for spring fingers (268600) left-hand spring fingers for horizontal clamping (269200) 35 mm spring finger for vertical clamping (269100)
268200     Right-hand spring finger for horizontal clamping
268100     50 mm spring finger for vertical clamping
283600     Precision mini chuck
267900     V-block with spring finger
266100     Small-parts clamp with stepped jaw
278800     Parallel clamp
269300     Spring finger with SWA 5
269600     Rotary unit
269700     Satellite mount, horizontal
270900     15 mm precision vice
333000     Four-way hexagon key
Customer specifications     Adapter or T-slot nuts (see ordering information)
