Clamping device sets WERTH ScopeCheck S

Maximum modularity for optimum application flexibility.

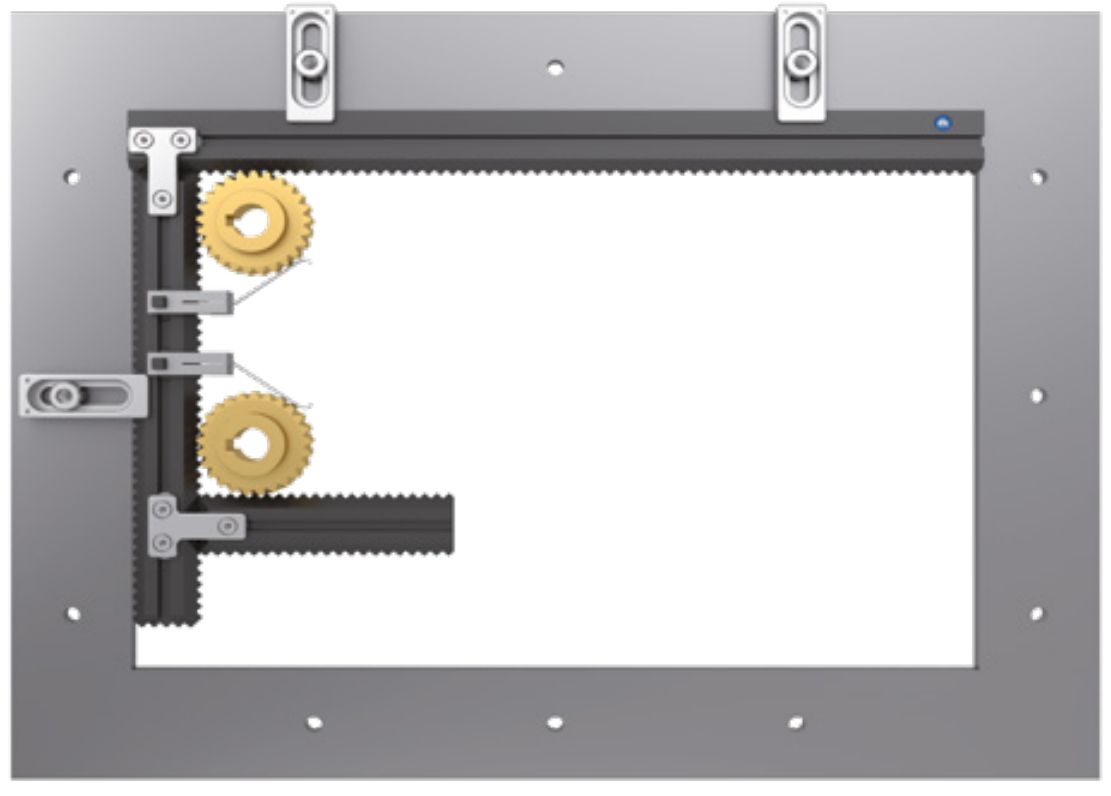

A basic rail configuration precisely matched to the equipment and two sets of fixating elements form the basis for the perfect alignment and fixing of many different parts. The modular clamping system from dk solves clamping requirements, as flexibly as the ScopeCheck S fulfills different measuring tasks. The measuring device is designed for measuring turned, milled, injection moulded, punched and formed parts and the basic equipment sets are also designed for this purpose. dk supports near-production measuring with the quick-change pallet: set-ups outside the measuring machine are used to achieve maximum performance by minimising unproductive machine times and simplifying the overall process. For special part geometries many additional clamping elements which are 100% compatible with these basic sets can be found in the dk main catalogue with over 1,000 products.

Set Contents
345420     SCHIENENFIX basic rail 450 mm/1 side fine toothed (5 mm) system rail with T-slot      1x
346020     SCHIENENFIX connecting rail 200 mm/4 side fine toothed (5 mm) system rail with T-slot      1x
347220     SCHIENENFIX connecting rail 100 mm/3 side fine toothed (5 mm) system rail with T-slot     1x
348000     T-connector for toothed rails / Connecting piece for toothed rails with T-slot     2x
262916     Clamping claws 35 mm/For clamping the toothed rails to the Werth ScopeCheck S     3x
349100     Spring finger for horizontal clamping, left 35 mm     1x
349300     Spring finger for horizontal clamping, left 50 mm     1x
349200     Spring finger for horizontal clamping, right 35 mm     1x
349400     Spring finger for horizontal clamping, right 50 mm     1x
268500     Square columns for spring fingers/Movable and self-locking in a T-slot     4x
