Basic fixation set for turned parts

Maximum modularity for optimum application flexibility.

A basic rail configuration precisely matched to the equipment and two sets of fixating elements form the basis for the perfect alignment and fixing of many different parts. The modular clamping system from dk solves clamping requirements, as flexibly as the ScopeCheck S fulfills different measuring tasks. The measuring device ... Lees meer
€ 1.222,00 (€ 1.478,62 incl. BTW)
Bestelcode 269977_W01
Maximum modularity for optimum application flexibility.

A basic rail configuration precisely matched to the equipment and two sets of fixating elements form the basis for the perfect alignment and fixing of many different parts. The modular clamping system from dk solves clamping requirements, as flexibly as the ScopeCheck S fulfills different measuring tasks. The measuring device is designed for measuring turned, milled, injection moulded, punched and formed parts and the basic equipment sets are also designed for this purpose. dk supports near-production measuring with the quick-change pallet: set-ups outside the measuring machine are used to achieve maximum performance by minimising unproductive machine times and simplifying the overall process. For special part geometries many additional clamping elements which are 100% compatible with these basic sets can be found in the dk main catalogue with over 1,000 products.

Set Contents

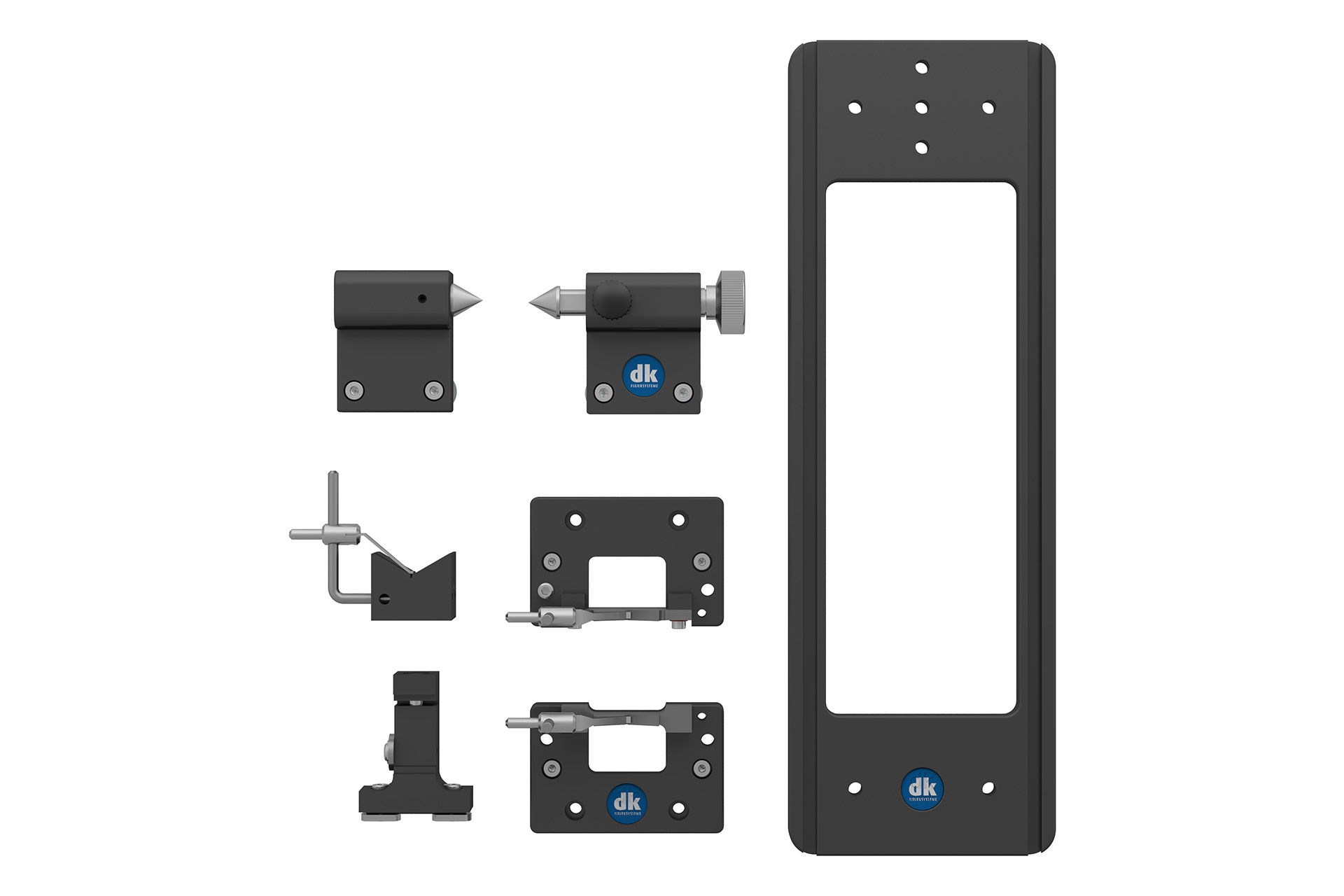

345801     Quick-change pallet with view window 200x72 mm /Basic pallet 305x100x10 mm with T-slot and M6 hole for supporting various fixating elements. The pallets together with the clamping elements can be aligned and clamped on the toothed rails     1x
349600     Pair of tailstocks for T-slots in toothed rails and pallets/Can be mounted at any distance apart; with one fixed and one movable centre; incl. centres Ø12 / 60 mm; can be exchanged for other sizes and types     1x
345100     Prism support set for T-slots in toothed rails and pallets/Can be mounted any distance apart; one prism is height-adjustable for precise horizontal alignment of stepped shafts; for Ø 8 to 28 mm; incl. columns and spring fingers     1x
267900     V-block 120° with spring finger/120° V-block with spring finger for holding rotationally symmetrical parts with a spring finger; for vertical and horizontal positioning of test pieces     1x
267910     V-block 120° with spring finger/Matching prism holder     1x
