Basic fixation set for milled, moulded, punched and formed parts

Maximum modularity for optimum application flexibility.

A basic rail configuration precisely matched to the equipment and two sets of fixating elements form the basis for the perfect alignment and fixing of many different parts. The modular clamping system from dk solves clamping requirements, as flexibly as the ScopeCheck S fulfills different measuring tasks. The measuring device ... Lees meer
€ 1.930,00 (€ 2.335,30 incl. BTW)
Bestelcode 269977_W02
Maximum modularity for optimum application flexibility.

A basic rail configuration precisely matched to the equipment and two sets of fixating elements form the basis for the perfect alignment and fixing of many different parts. The modular clamping system from dk solves clamping requirements, as flexibly as the ScopeCheck S fulfills different measuring tasks. The measuring device is designed for measuring turned, milled, injection moulded, punched and formed parts and the basic equipment sets are also designed for this purpose. dk supports near-production measuring with the quick-change pallet: set-ups outside the measuring machine are used to achieve maximum performance by minimising unproductive machine times and simplifying the overall process. For special part geometries many additional clamping elements which are 100% compatible with these basic sets can be found in the dk main catalogue with over 1,000 products.

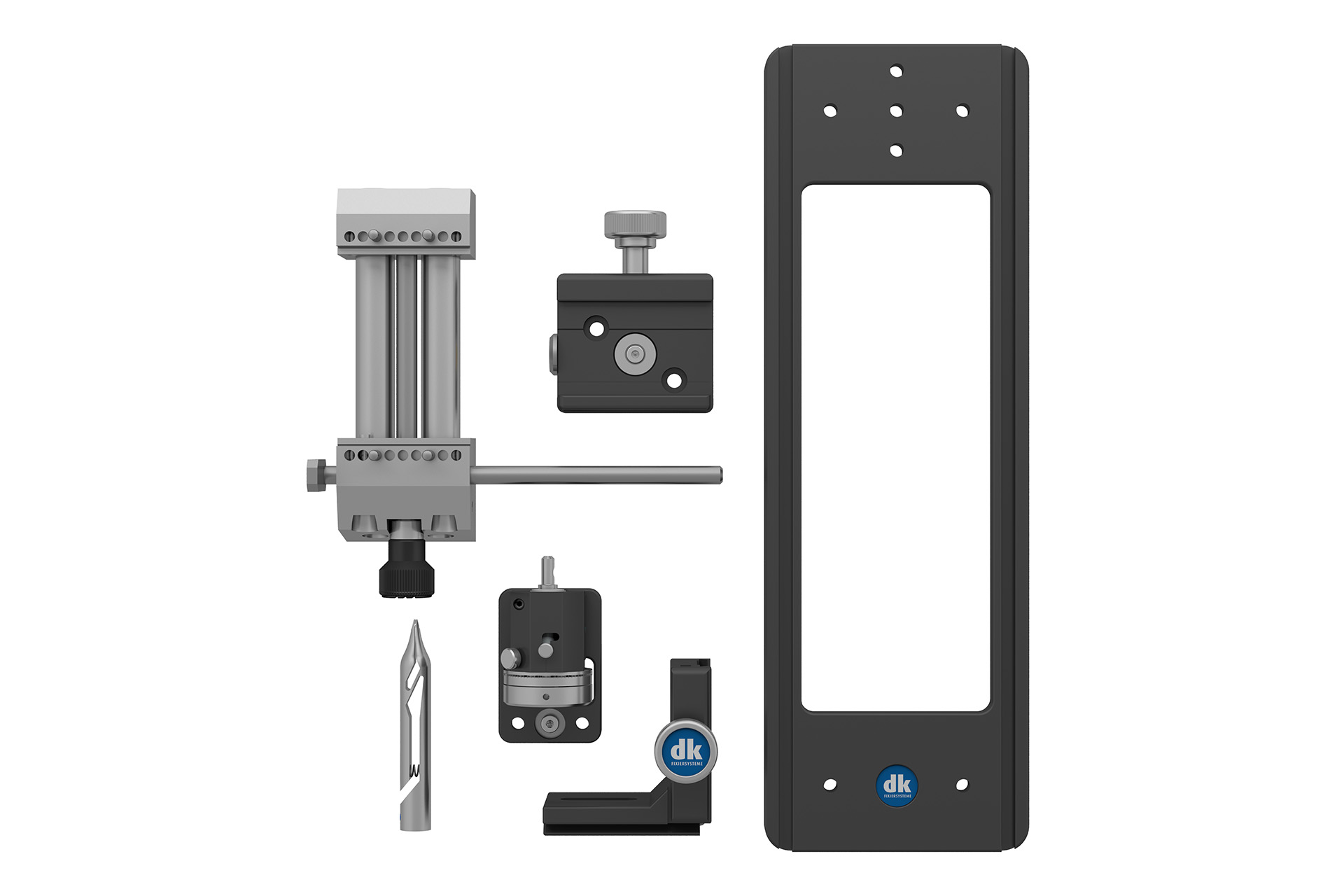

Set Contents
273320     SWA39 Quick-action clamp for toothed rails and pallets/For mounting in T-slots of toothed rails and pallets     1x
283300     SWA39 Quick-action clamp 90° angle element/For adaption to the SWA39 quick-action clamp     1x
282100     50 mm precision vice /With SWA39 interface. Incl. adjustable stop, clamping width extension from 35 to 75 mm and pins for raised part positioning     1x
345801     Quick-change pallet with view window 200x72 mm /Basic pallet 305x100x10 mm with T-slot and M6 hole for supporting various fixating elements. The pallets together with the clamping elements can be aligned and clamped on the toothed rails     1x
314900     Rotary unit with fine adjustment and indexing/Infinite rotation, incremental locking every 30° can be activated, interface for all clamping elements with SWA5 adapter such as small part holder and small chuck     1x
266100     Small-parts clamp with stepped jaw/Fixation of small parts by spring tension; SWA5 adaption     1x
