Schienenfix Set for LVC200(+)

Base rail sets for Vision EngineeringLVC200 and LVC200+

Description
Clamping set for optical measuring tasks. For constructing a simple support frame that can be attached to the threaded holes / grooves of the measuring table. Includes 2 spring clamps to fix test parts quickly and easily.

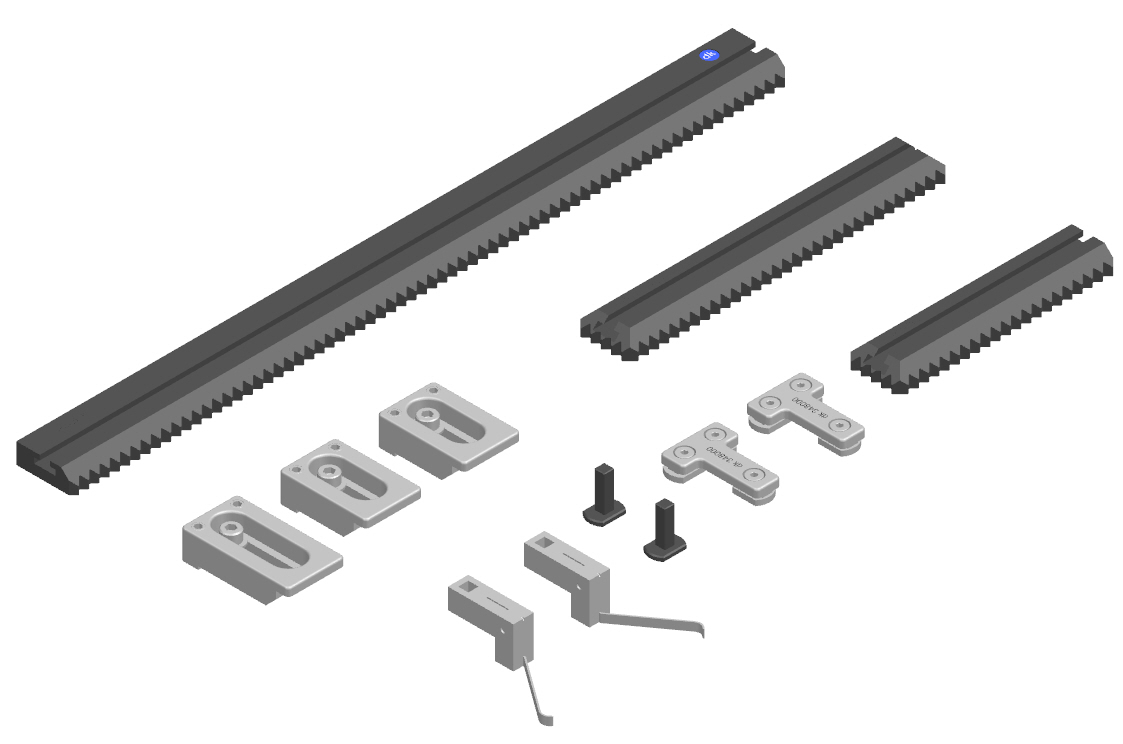

Set Contents
345020     SCHIENENFIX basic rail 250 mm/1 side fine toothed (5 mm) system rail with T-slot      1x
347220     SCHIENENFIX connecting rail 100 mm/3 side fine toothed (5 mm) system rail with T-slot     1x
347420     SCHIENENFIX connecting rail 150 mm/3 side fine toothed (5 mm) system rail with T-slot     1x
348000     T-connector for toothed rails / Connecting piece for toothed rails with T-slot     2x
262915     Clamping claws 35 mm/For clamping the toothed rails to the Swift Pro     3x
349100     Spring finger for horizontal clamping, left 35 mm     1x
349200     Spring finger for horizontal clamping, right 35 mm     1x
268500     Square columns for spring fingers/Movable and self-locking in a T-slot     2x
