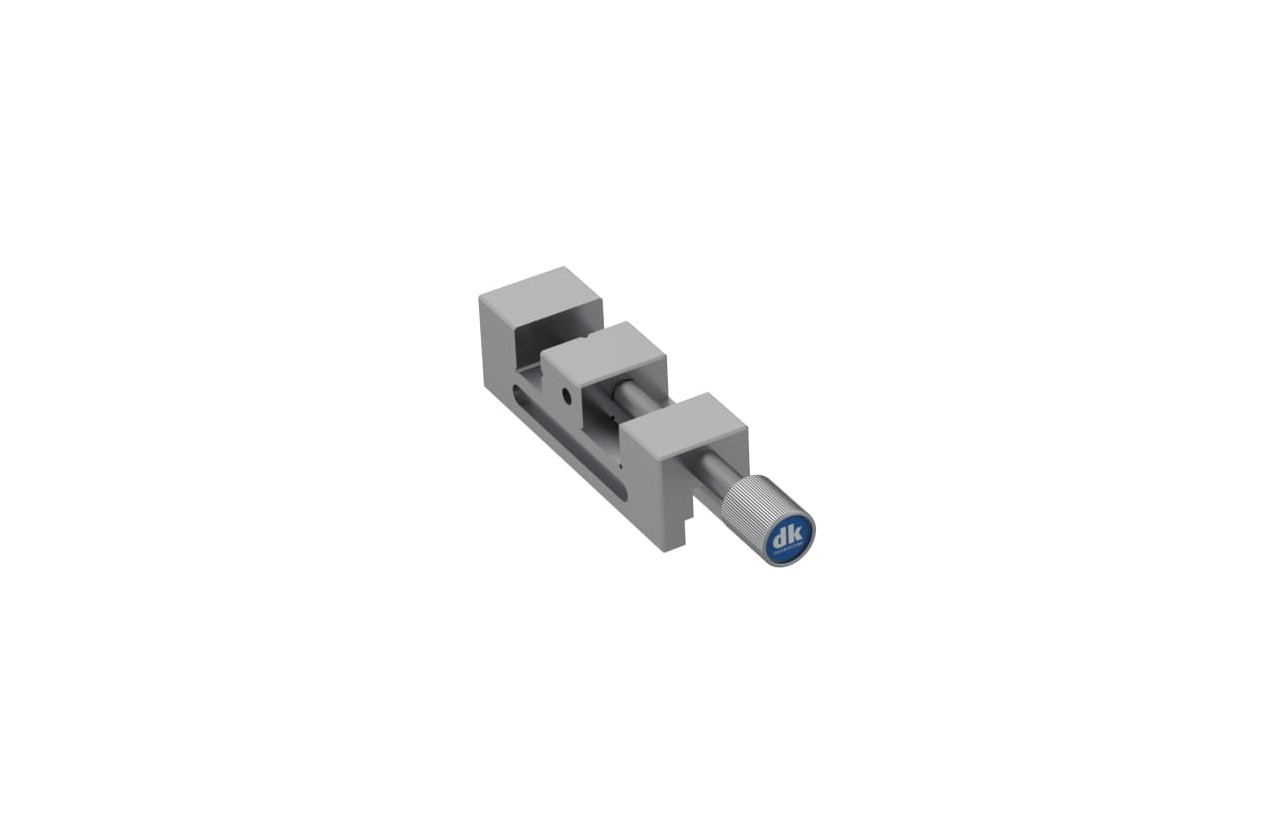

Inspection vice 20mm

Description
Due to a perpendicularity and parallelism precision of 0.005 mm, all 4 sides can be used. Horizontally and vertically ground prism jaws. Vice and fixed jaw machined from a single piece. By using the attachment sets the vices can also be used in the SWA 39 system.

Material
Alloyed tool steel, hardened to 60 HRC and finely ground.

Total length ... Lees meer
€ 254,00 (€ 307,34 incl. BTW)
Bestelcode 270720
Description
Due to a perpendicularity and parallelism precision of 0.005 mm, all 4 sides can be used. Horizontally and vertically ground prism jaws. Vice and fixed jaw machined from a single piece. By using the attachment sets the vices can also be used in the SWA 39 system.

Material
Alloyed tool steel, hardened to 60 HRC and finely ground.

Total length open     116 mm
Total length closed     91 mm
Width     20 mm
Height     22 mm
Clamping width     24.5 mm
Weight     0.175 kg
Perpendicularity / parallelism 5 µm
