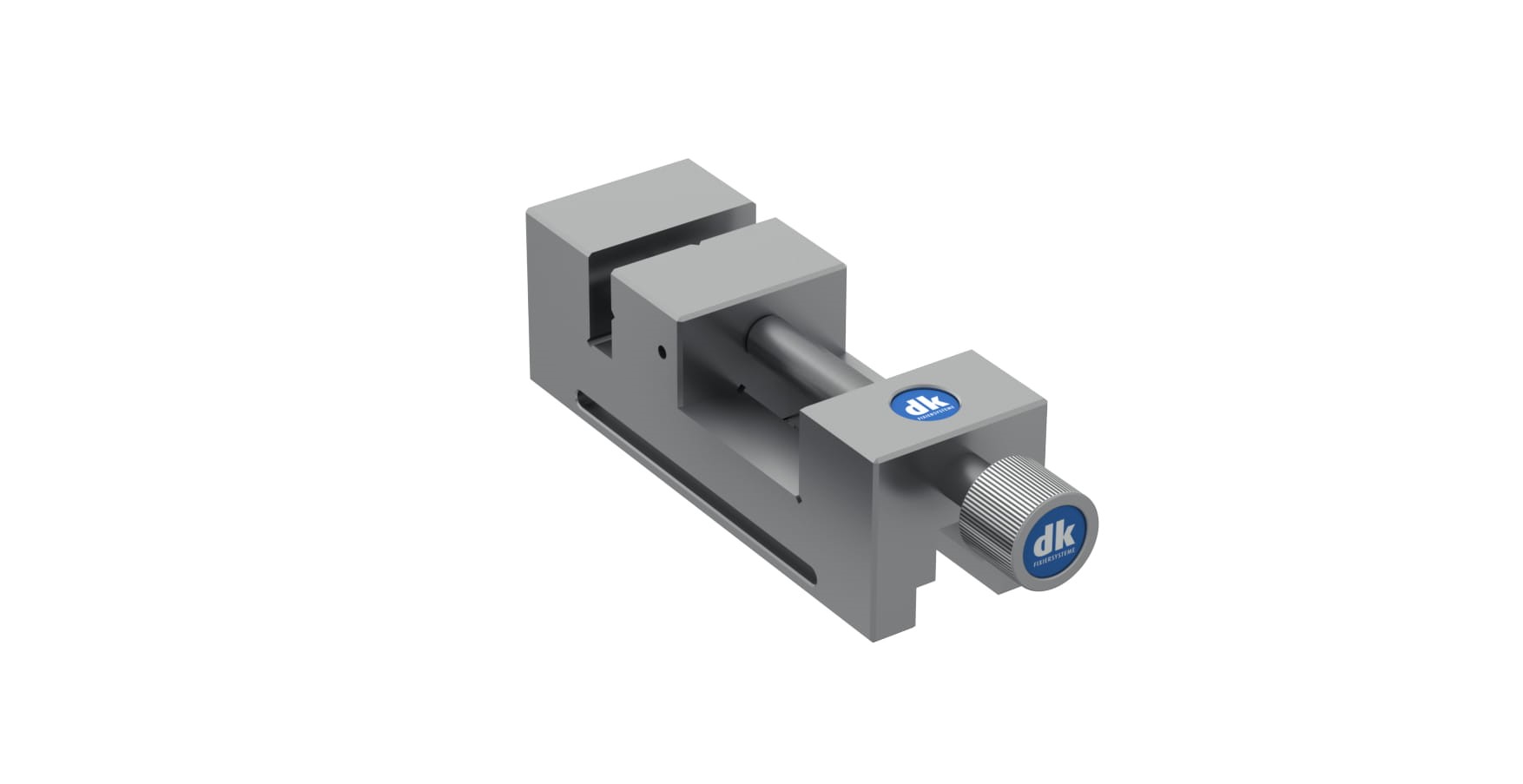

Inspection vice 50mm

Description
Due to a perpendicularity and parallelism precision of 0.005 mm, all 4 sides can be used. Horizontally and vertically ground prism jaws. Vice and fixed jaw machined from a single piece. By using the attachment sets the vices can also be used in the SWA 39 system.

Material
Alloyed tool steel, hardened to 60 HRC and finely ground.

Total length ... Lees meer
€ 298,00 (€ 360,58 incl. BTW)
Bestelcode 270760
Description
Due to a perpendicularity and parallelism precision of 0.005 mm, all 4 sides can be used. Horizontally and vertically ground prism jaws. Vice and fixed jaw machined from a single piece. By using the attachment sets the vices can also be used in the SWA 39 system.

Material
Alloyed tool steel, hardened to 60 HRC and finely ground.

Total length open     235 mm
Total length closed     175 mm
Width     50 mm
Height     50 mm
Clamping width     59.5 mm
Weight     1.970 kg
Perpendicularity / parallelism 5 µm
