  • 285160

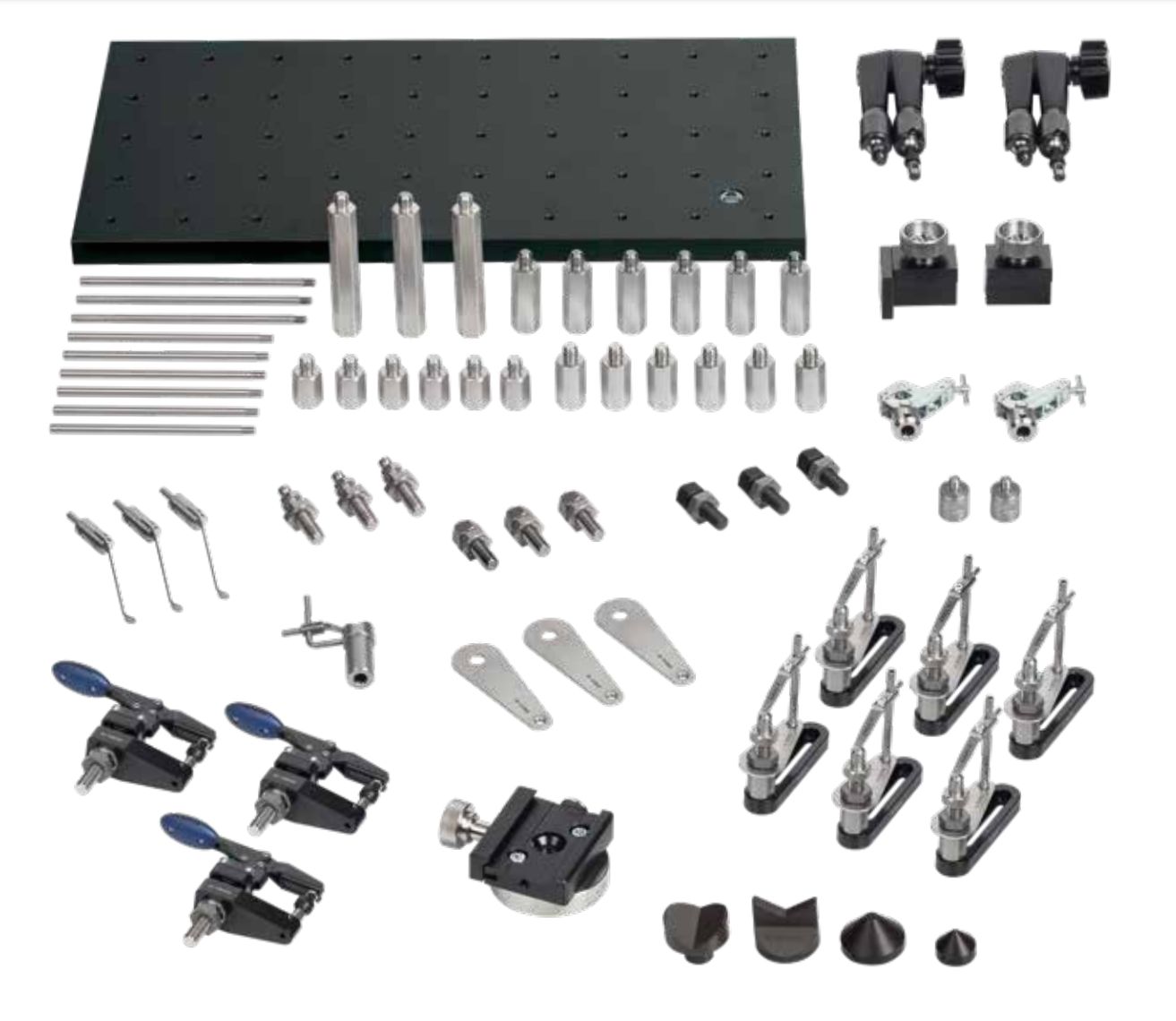

Spannfix ECO complete set 600x300

Description
The set contains diverse supports, extension pieces and stops. Workpieces are held using spring fingers or parallel clamps. The basic part is a 600 x 300 mm baseplate with M6 mounting holes for rapid and flexible positioning of modular elements. The complete set enables a wide variety of metal and plastic plate, milled and turned parts to be clamped.

Ordering ... Lees meer
€ 4.981,00 (€ 6.027,01 incl. BTW)
Bestelcode 285170
Description
The set contains diverse supports, extension pieces and stops. Workpieces are held using spring fingers or parallel clamps. The basic part is a 600 x 300 mm baseplate with M6 mounting holes for rapid and flexible positioning of modular elements. The complete set enables a wide variety of metal and plastic plate, milled and turned parts to be clamped.

Ordering information
When ordering, let us know the thread or T-slot size on your measuring equipment.

Set contents
395040 Baseplate with tapped holes, 600 x 300 mm     1x
281436 Baseplate clamping claws (set)     1x
285206 Quick-action clamp     1x
322005 Screw jack set with spring finger     6x
322600 Screw jack with 90° point     3x
323000 Self-aligning pads     3x
368500 125 mm columns, for spring finger or as stops     6x
368505 150 mm columns, for spring finger or as stops     3x
353800 Adapter plates for columns     3x
302900 75 mm spring finger     6x
322200 25 mm extension     6x
322300 35 mm extension     6x
322400 50 mm extension     6x
304400 100 mm extension     3x
336400 Toggle clamps with support     3x
329500 Quick-change mounts     3x
323500 8 mm prism 120°      1x
23400 40 mm prism 120°      1x
303700 25 mm centre point, 90°     1x
303800 40 mm centre point, 90°     1x
275000 Thread reducer M6/M8     2x
296700 244018 SU/SWA 8 VL-160-8-SWA8 articulated arm     2x
278400 0–25 mm parallel clamp     2x
285810 120° prism with spring finger     1x
