SPANNFIX PRO complete set without baseplate

Description
Set that includes articulated arms and parallel clamps for quick and flexible positioning of various test parts. Various support and clamping modules can be used to achieve reproducible fixation. The high locking forces possible on the articulated arms enable even heavy parts to be held securely.

Ordering information
When ordering, let us know the thread or T-slot size on your measuring equipment.

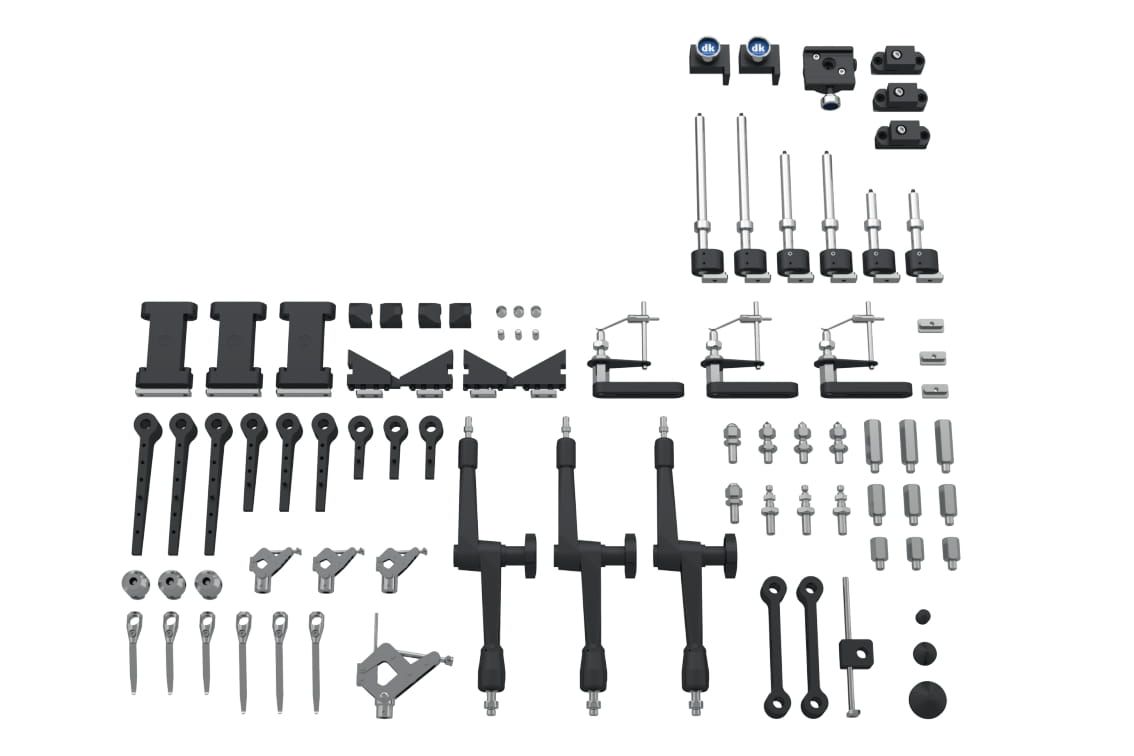

Set contents
288605 100 mm columns     2x
288805 150 mm columns with T-slot nuts     3x
288905 200 mm columns with T-slot nuts     2x
Claw clamps for Spannfix baseplates Order numbers 281406, 281408, 281410, 281412 for fastening in M6, M8, M10 or M12     1x
285300 Quick-action clamp for T-slot     1x
320500 Side clamp with draw-down jaw     3x
305500 Pair of V-block halves     2x
324100 100 mm extension pieces     3x
286700 100 mm arm     3x
286600 150 mm arm     3x
286800 60 mm arm for column     3x
287200 Pairs of V-block halves     2x
322005 Screw jack set with spring finger     3x
326400 T-slot nuts     3x
322200 25 mm extension     3x
322300 35 mm extension     3x
322400 50 mm extension     3x
322600 Jack screws with cone point     3x
329500 M 10/SWA 8 quick-change mount     3x
323000 M 10 self-aligning pads     2x
287500 Adjustable stop     1x
287100 Bridge support, centre distance 125 mm     2x
302500 75 mm spring finger     3x
302600 95 mm spring finger     3x
297000 MU/SWA 8 articulated arm     3x
290700 M 10 satellite mounts     3x
279600 Parallel clamp with guide pin     1x
278400 Parallel clamps     3x
303600 15 mm centre     1x
303700 25 mm centre     1x
303800 40 mm centre     1x
319500 R4 x 20 mm support pins     3x
319300 Support pins with 90° point     3x
