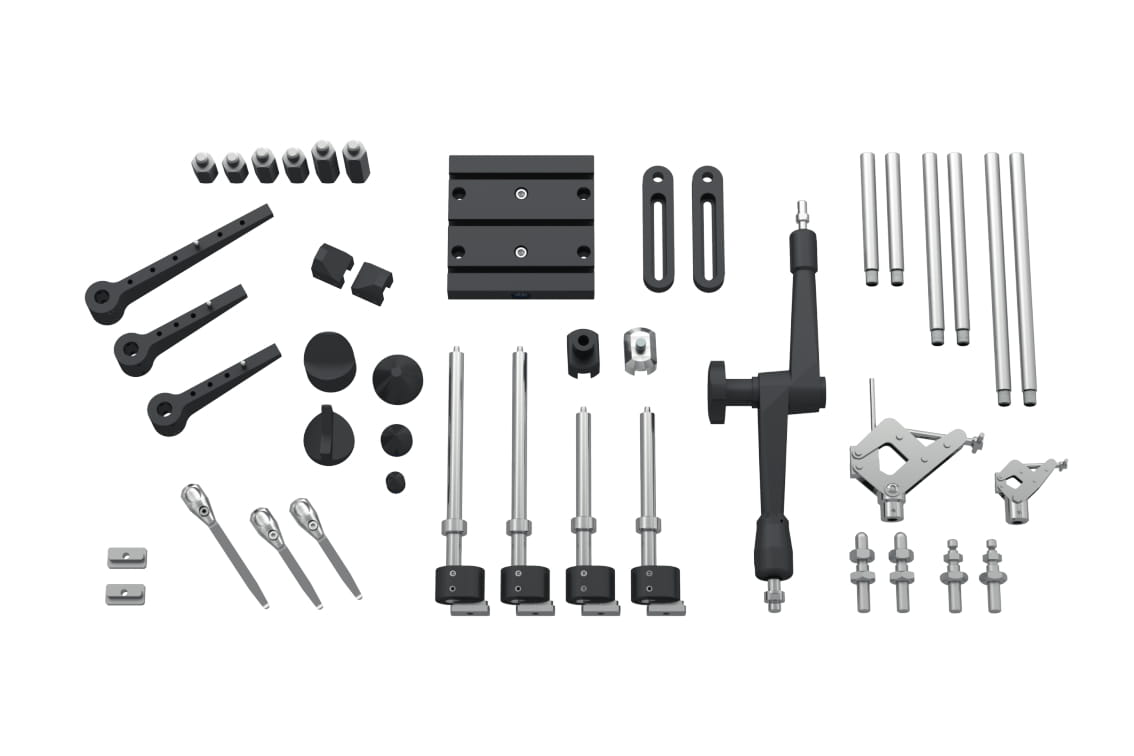

SPANNFIX PRO expansion set

Description
Expansion set with diverse support and clamping modules for the reproducible fixation of test parts.

Set contents
325100 Intermediate plate     1x
297000 MU/SWA 8 articulated arm     1x
322010 Base rails 2 326400 T-slot nuts     2x
322200 25 mm extension     2x
322300 35 mm extension     2x
322400 50 mm extension     2x
288805 150 mm columns with T-slot nuts     2x
288905 200 mm columns with T-slot nuts     2x
286700 100 mm arm 2 286600 150 mm arm     1x
287200 Pair of V-blocks     1x
303200 SWA 8 adapter for arm     1x
303300 M 10 adapter for arm     1x
322700 Jack screws with ball-end     2x
329500 Quick-change mounts     2x
303600 Ø15 mm centre for quick-change mount     1x
303700 Ø25 mm centre for quick-change mount     1x
303800 Ø40 mm centre for quick-change mount     1x
323500 8 mm prism support for quick-change mount     1x
323400 40 mm prism support for quick-change mount     1x
302300 75 mm spring finger     2x
302400 95 mm spring finger     1x
368710 100 mm columns     2x
368810 150 mm columns     2x
368910 200 mm columns     2x
278400 Parallel clamp     1x
279600 Parallel clamp with guide pin     1x
