  • 267365

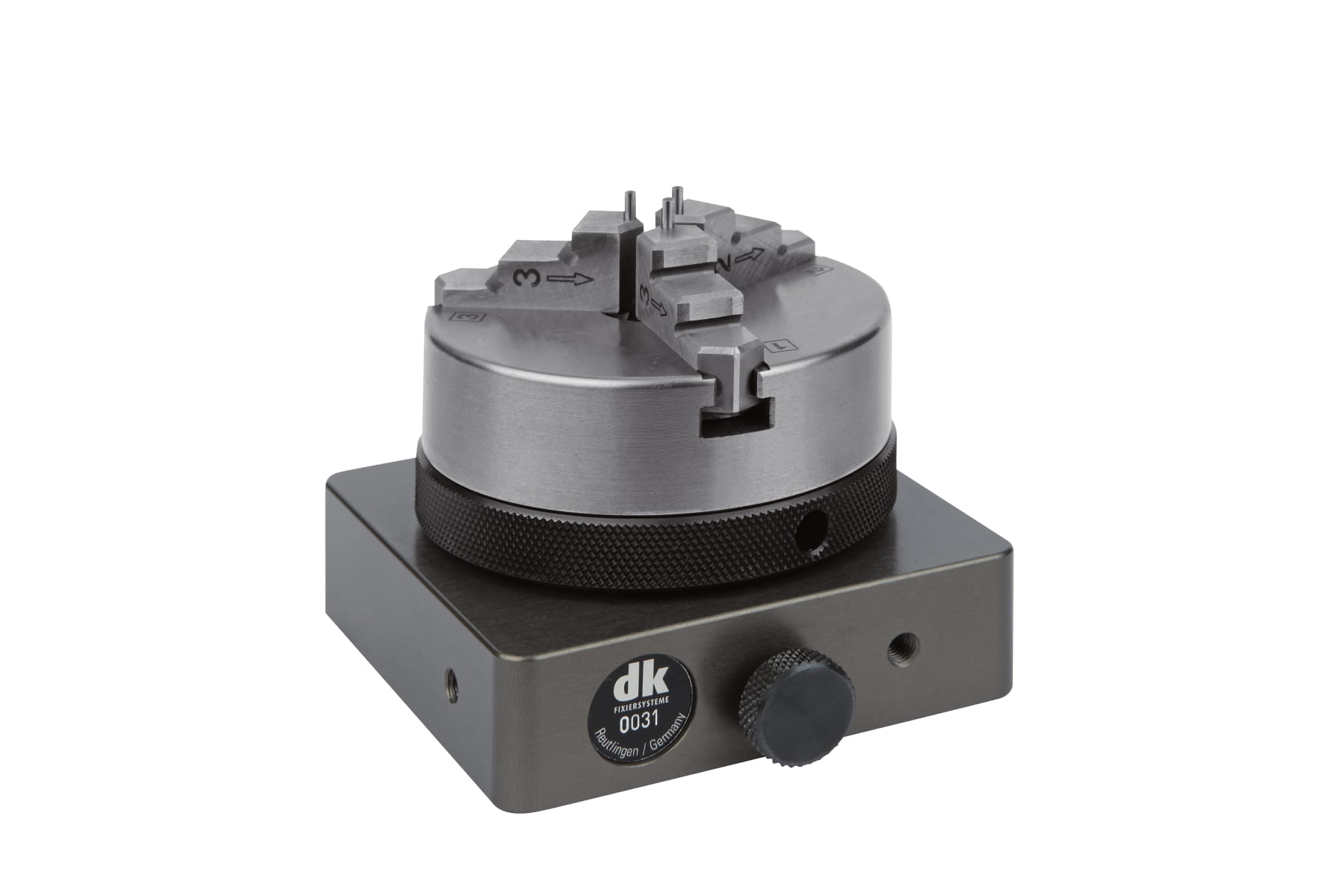

Rotary table with chuck 65mm SWA39

Description

Rotary mounted three-jaw manual chuck with high concentricity. For internal and external clamping of rotationally symmetrical parts. With Ø2 x 7 mm deep holes and 2 sets of pins of different lengths for elevating parts for access from all sides. Available with an SWA 39 quick-change adapter or base plate.

Material

Hard-coated aluminium. ... Lees meer
€ 1.567,00 (€ 1.896,07 incl. BTW)
Bestelcode 267360
Description

Rotary mounted three-jaw manual chuck with high concentricity. For internal and external clamping of rotationally symmetrical parts. With Ø2 x 7 mm deep holes and 2 sets of pins of different lengths for elevating parts for access from all sides. Available with an SWA 39 quick-change adapter or base plate.

Material

Hard-coated aluminium. Hardened steel jaws.

Supplied with

Operating tools and 2 sets of 3 pins 12 mm and 18 mm long.

Size      65 mm
Version     SWA 39
Radial runout     +/- 0.025 mm
Height     71 mm
