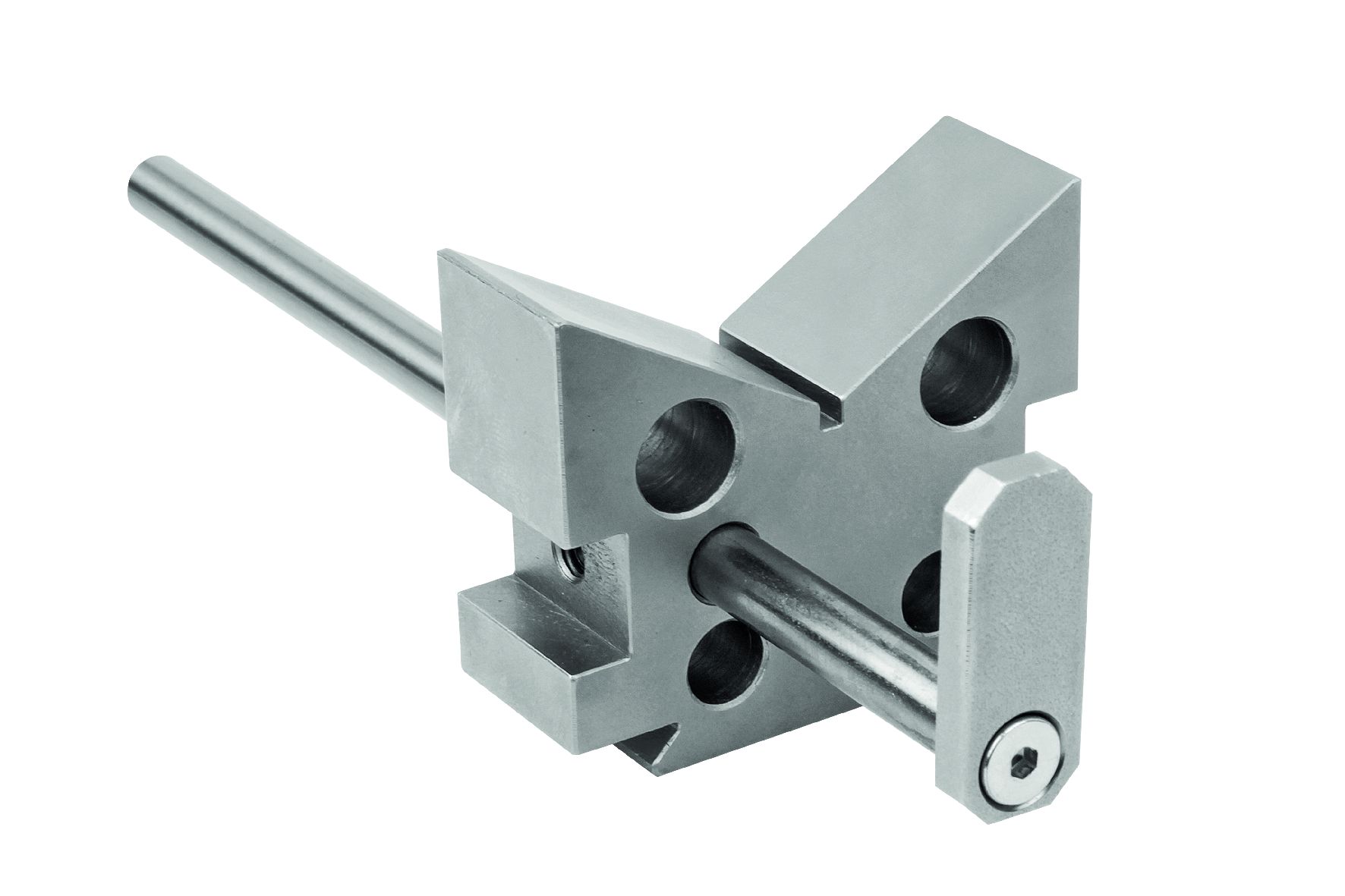

V-block 60 mm

Description
120° V-block for mounting rotationally symmetrical test parts. Adjustable length stop for reproducible clamping. With an SWA 39 quick-change adapter on the V-block base and SWA 8 connection option (272700 only). Also with lateral slots and tapped holes for mounting a tensioning strap fixture, U-clamp or spring finger.

Material
Hardened steel.

Supplied with
Adjustable length stop (318110).

V-block length     60 mm
V-block width     60 mm
Prism     120°

Mahr partnumber 6820025
