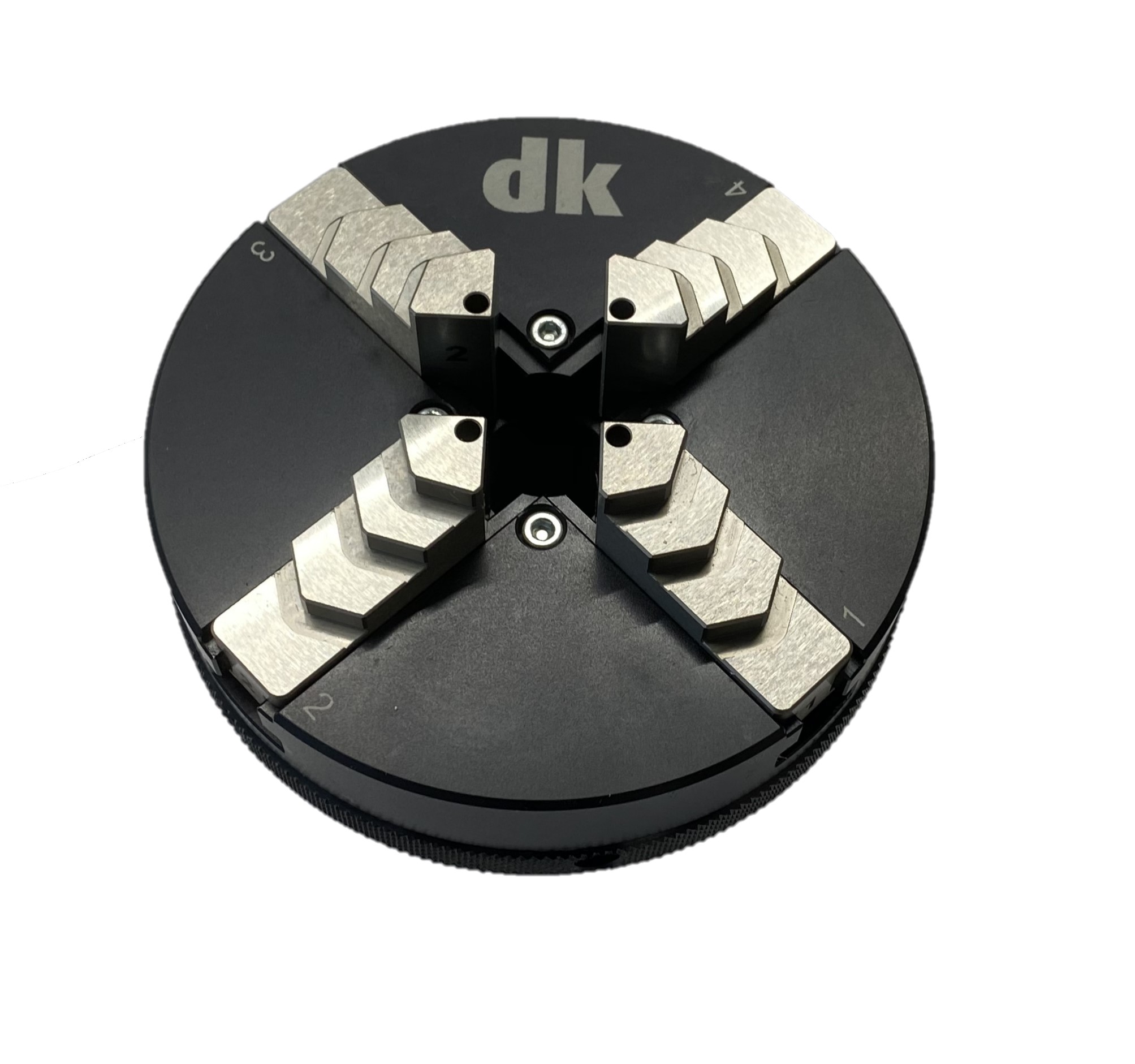

Four-jaw chuck, 100mm, SWA39

Description
Manually operated four-jaw manual chuck with tool-free reversible jaws for internal and external clamping of rotationally symmetrical and square cross-sections. External clamping of rotationally symmetrical and square cross-sections. With pin holes and 3 sets of pins of different heights for increased fixing of parts to make them accessible from all sides.
Chuck precision without further attachments:
Radial runout < 0.03 mm
Axial run-out < 0.01 mm
Repeat accuracy < 0.01 mm
With an SWA 39 quick-change adapter.

Material
Steel and hard-coated aluminium.

Supplied with
Operating tools and 3 sets of 4 pins 12 mm, 18 mm and 24 mm long.
