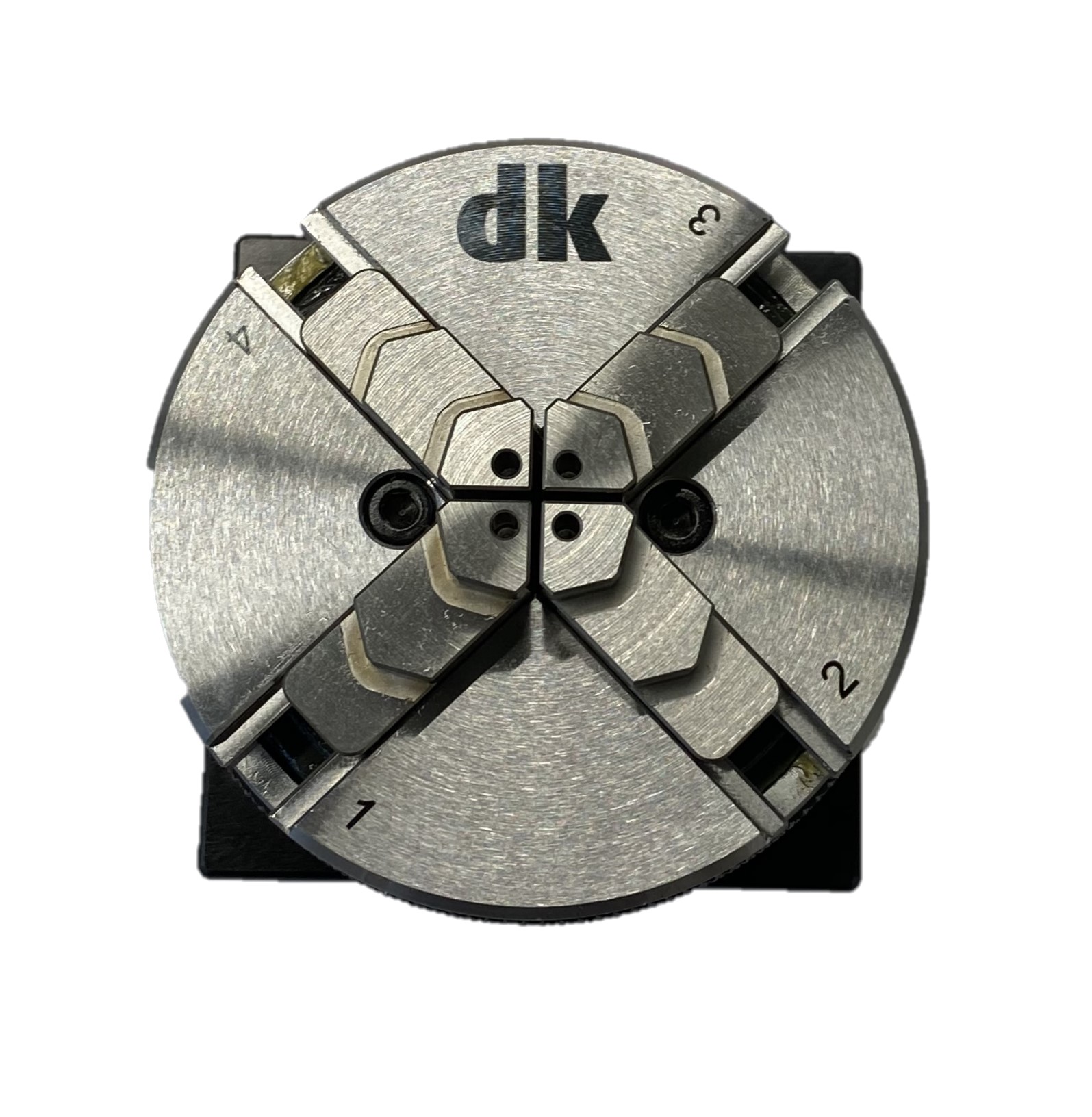

Four-jaw chuck, 65mm, 3xM4

Description
Manually operated four-jaw manual chuck with tool-free reversible jaws for internal and external clamping of rotationally symmetrical and square cross-sections. External clamping of rotationally symmetrical and square cross-sections. With pin holes and 2 of pins of different heights for increased fixing of parts to make them accessible from all sides. Pin holes Ø2 x 7 mm deep.
Chuck precision without further attachments:
Radial runout < 0.03 mm
Axial run-out < 0.01 mm
Repeat accuracy < 0.01 mm
With fastening holes.

Material
Steel and hard-coated aluminium.

Supplied with
Operating tools and 2 sets of 4 pins 12 mm and 18 mm long.
