Clamping sets "A3+"

Description
Set "A" with basic, structural and key clamping elements. The precision vice and the chuck from the expanded set can both be mounted directly to the quick-action base as a kind of zero-point clamping fixture. Alternatively, a swivel unit can be mounted in between enabling 3D spatial positioning of the clamping element and workpiece. This enables zero-point clamping with variable alignment, and scales ensure that positions can always be exactly reproduced for different workpieces.

Ordering information
When ordering, select the appropriate quick-action clamp or let us know the thread or T-slot size on your measuring equipment.

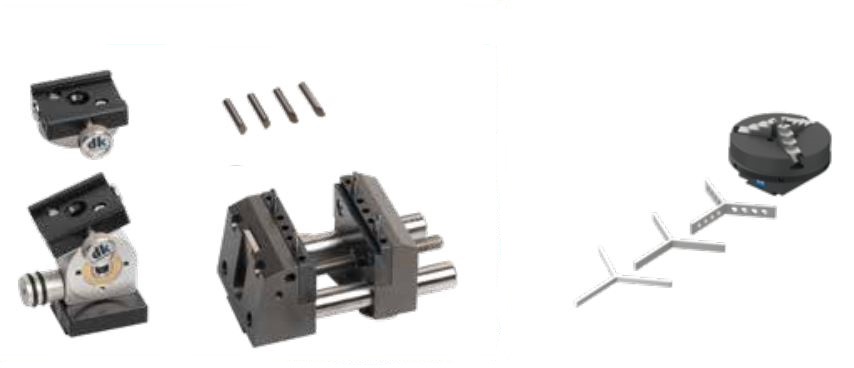

Set contents
308200 80 mm precision vice     1x
307800 Pins with straight faces for vice jaws (set of 4)     1x
326600 Pins with prism faces for vice jaws (set of 4)     1x
283220 100 mm precision three-jaw chuck     1x
314010 Quick-action clamp swivel unit     1x
283255 Seating spacers to raise workpieces for 100 mm chuck, 5 mm, 8 mm and 12 mm high.     1x
285206 M 6 or 285208 M 8 or 285210 M 10 or 285212 M 12 or 285300 T-slot     1x
