As of today we are offering till the 31st of July:
DAkkS calibration FREE (a 1166 Euro value) with purchase of a IKF100D system
For checking and calibrating of:
Production normals
Pin gauges
Plug gauges
Workpieces
Threaded plug gauges
Technical data
Application range / path 103 mm; 0-4 inch
Resolution 0,01 µm
Clamping shaft 28H6
Protection degree IP40
Measuring force 1 ,8 N
System accuracy 0,3 µm
Permissible shear force 2 N
Power supply 5 V DC, Mini USB
Operating position vertical
Weight 2.600 g
Benefits
High-precision measuring results by resolution 0,01 µm
High repeatability, operator independent by constant measuring force
Measuring objects up to 100 mm can be measured

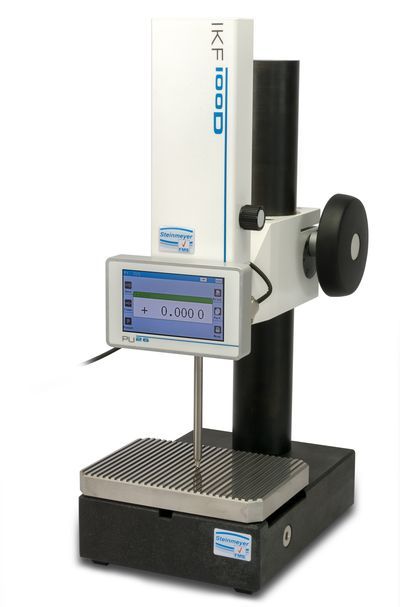

Compact vertical measuring system with integrated display unit PU26
Ideal for use in production hall
Measuring data can be processed with interface on the PU26
Exchangeable measuring tips with M2,5
More product
information can be found
here.
