Description

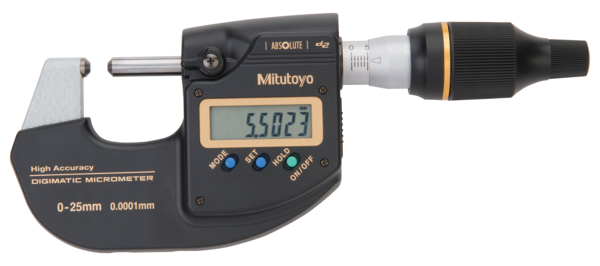

This Micrometer enables 0.1 μm resolution measurements and is ideal for customers who need to make highly accurate measurements with a hand-held tool (such as Gauge R & R analysis). The Absolute High-Accuracy Micrometer offers the following benefits:

• It delivers higher accuracy without sacrificing operability, by using Mitutoyo‘s innovative 0.1 μm resolution ABS (absolute) rotary sensor and high accuracy screw machining technology which reduces instrumental error to just 0.5 μm.
• Its highly rigid frame and high-performance constant-force mechanism (7-9 N) enables more stable measurement.

Features

Digital/Analog:	Digital
Inch-Metric:	Metric
Range:	0 - 25mm
Digital step:	0.1 µm / 0.5 µm
Maximum Permissible Error J MPE:	±0.5 µm
Flatness:	0.3 µm
Data output:	Yes
Display:	LCD, character height 7.5 mm
Measuring face:	Carbide-tipped, micro-lap finish, Ø 3.2 mm
Measuring spindle:	With spindle lock, ø 6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish
Power supply:	1 lithium battery CR-2032
Delivered:	Including box, key, driver, 1 battery, heat insulating cover, cleaning paper, certificate of inspection
Auto Power OFF after 20 min. non use:	Yes
Function lock:	Yes
HOLD:	Yes
Resolution switching:	Yes
Mass:	400g

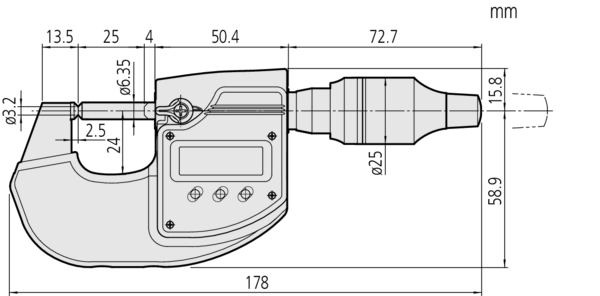

Dimensions
