Part number 01419055

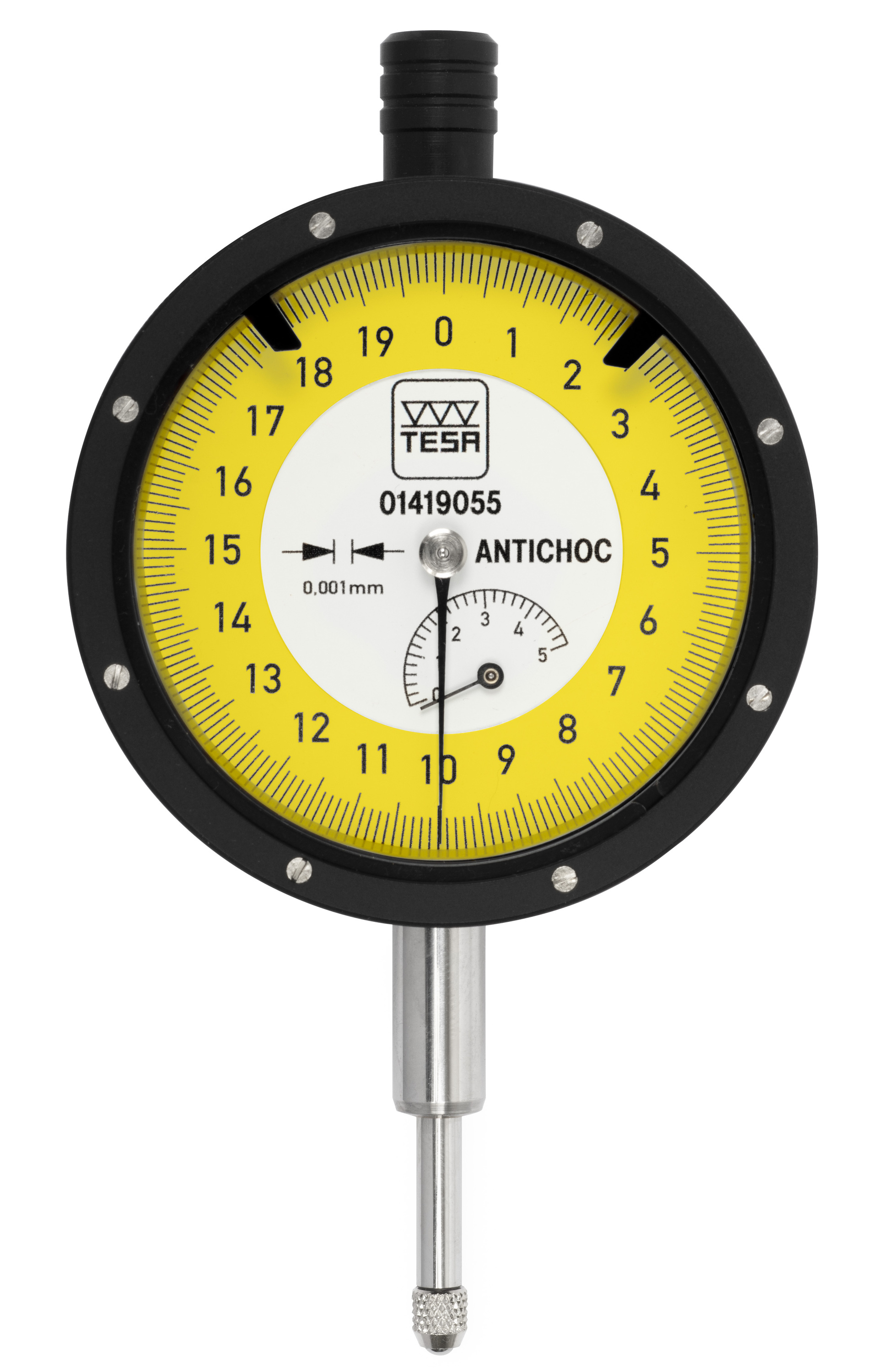

Short designation Analogue dial gauge, 5 mm, 0,001 mm, Ø 61,5 mm, IP40
Complete designation Analogue dial gauge, 5 mm, 0,001 mm, Ø 61,5 mm, IP40
Measuring range [mm] 5
Circular scale 0 ÷ 10 ÷ 20
Dial, Ø [mm] 61,5
Travel / revolution [mm] 0,2
Resolution [mm] 0,001
Measuring force [N] 1,4 ± 20%
Shockproof mechanism With
Degree of protection IP40
Weight [g] 210
Weight [lbs] 0,463
