Part number 01419056

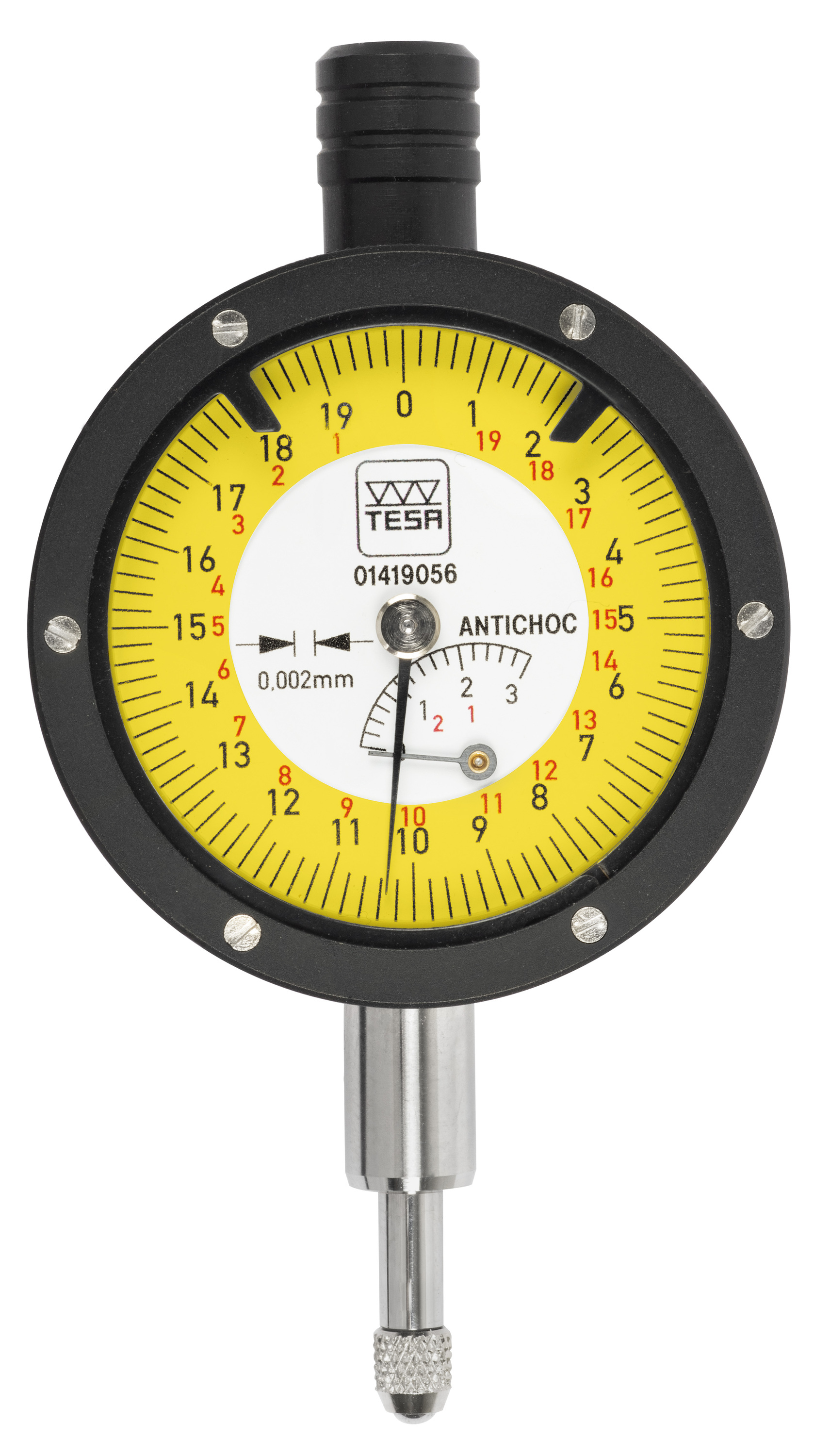

Short designation Analogue dial gauge, 3 mm, 0,002 mm, Ø 44,5 mm, IP40
Complete designation Analogue dial gauge, 3 mm, 0,002 mm, Ø 44,5 mm, IP40
Measuring range [mm] 3
Circular scale 0 ÷ 10 ÷ 20
Dial, Ø [mm] 44,5
Travel / revolution [mm] 0,2
Resolution [mm] 0,002
Measuring force [N] 1,1 ± 20%
Shockproof mechanism With
Degree of protection IP40
Weight [g] 108
Weight [lbs] 0,2381
