DESCRIPTION
• USE
- Robust, for laboratory and workshop use
- Compatible with a wide range of probes and measuring devices
- Large colour screen for comfortable reading in dark environments
- Black background display for excellent contrast
- Refined interface for easy handling without confusion
- 4 different display styles
- Touch screen
• FUNCTIONS
- One or two measurement values displayed
- Static or dynamic measurements
- Intuitive measurement setting
- 16 tolerance classes available
- Mathematical functions for simultaneous calculation of multiple probes (flatness)
Units mm / in
Standard DIN 32876
Max. perm. errors At 20°C, relative humidity of ≤ 50 %, with fictive probes:
Digital display: ± (0,2 % measured value + 0,3 µm)
Material Housing: aluminium
Dimensions Housing: 112 x 190 x 119 mm
Screen: 155 x 87 mm
Degree of protection Front side: IP65
Particular characteristic(s) At 20°C and relative humidity of ≤ 50 %:
Zero drift ≤ 0,15 μm / °C
Weight 1,74 kg
Power supply 100 ÷ 240 V, 50 ÷ 60 Hz, 0,6 A

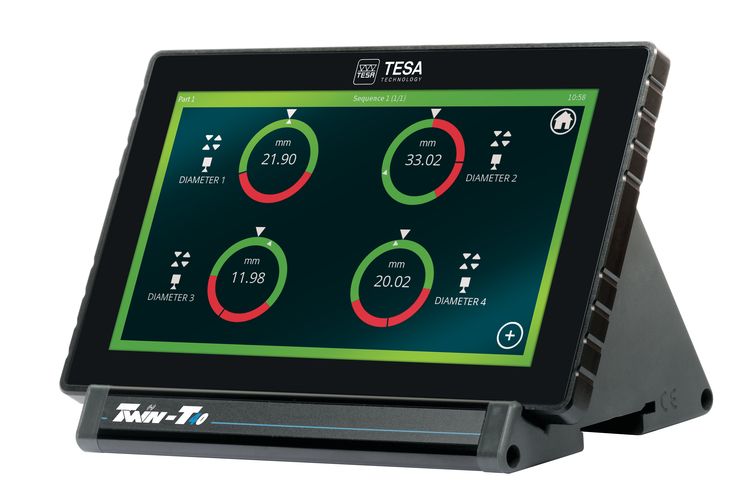

Included in delivery TWIN-T40 display unit
Power supply + EU, UK, US and CH cables
Self-test report
Calibration certificate
Data output(s) TLC, RS232
