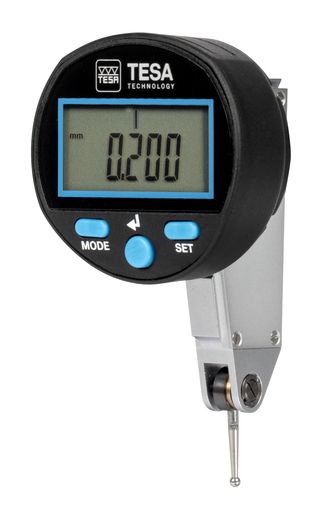

DIALTRONIC lever indicator

DIALTRONIC electronic lever-type dial test indicator

Key features:
Essential instruments for workshops and measurement laboratories. They can be used for comparative measurements on surface plates or for recording shape and position errors like axial and radial runout.

Functions:
• Data transmission either by BLUETOOTH® or cable
• Data output by means of a RS232 cable
• External power supply cable
• Dynamic Min / Max / Max-Min measurement
• Automatic or manual switch-off
• Choice of resolution (0.01 or 0.001 mm)
• Selection of measuring direction
• Zeroing / Preset
• Selection mm / in
• Locking of the measured value
• Multiplication factor
• Locking of the keyboard

Technical specifications
Measuring range (mm) 0.8
Resolution 0.001 mm / 0.00005 in
Indication error over the measurement range
(Retractable and extendable plunger) MPEtot (µm) 4
Indication error over the measurement range
(Retractable plunger) MPEE (µm) 3
Hysteresis of the indication error MPEH (µm) 2
Repeatability of the indication error MPER (µm) 1
Measurement force (N) 0.15
Weight (g) 70
Protection class IP54
